Hydraulic drilling rig for excavator 3-5.5 t - TEHB4500

TEHB4500 drill rig suited to 3-5.5t excavators - the ideal choice for medium-sized equipment

The TEHB4500 has been specifically designed to work with excavators weighing 3-5.5t, making it the perfect attachment for construction, agricultural and installation companies using compact machines.

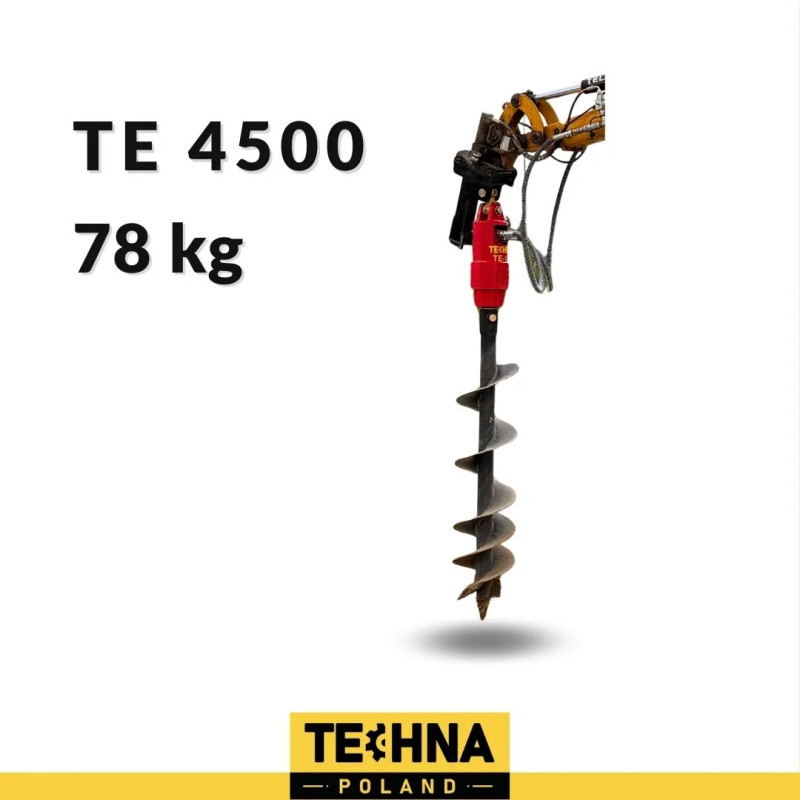

The drive unit's low weight of only 78kg ensures easier installation and stable operation without putting undue strain on the excavator arm.

The TEHB4500 has been tailored to fit excavators weighing 3-5.5t, and its drive unit weighs only 78kg, ensuring stable operation without overloading the machine. The diameter of the unit is 238 mm and the standard 51 mm hexagonal input ensures compatibility with popular industry solutions. It is a great choice for operators who need a powerful, reliable drill rig for everyday field work, whether on construction sites, agriculture or infrastructure installations.

High torque 4,500 Nm - power that can handle hard ground

The TEHB4500's greatest asset is its impressive torque of up to 4,500 Nm, which ensures efficient drilling even in difficult ground. With this kind of power , the unit is ideal for situations where the ground is compacted, clayey or contains rocky layers, guaranteeing reliable and stable operation in all field conditions.

Operating parameters include a maximum torque of 4,500 Nm and a speed of up to 70 rpm, allowing efficient drilling without losing control of the process. The TEHB4500 is the equipment of choice for professionals who expect real strength, reliability and complete stability on any job.

TEHB4500 hydraulic drilling rig with a wide drilling range - from 100 to 450 mm

The TEHB4500 drill rig provides great flexibility in applications with its ability to drill from 100 to 450 mm in diameter. This makes one unit capable of handling a wide range of tasks on a construction site or farm.

Amongst other things, the drill is suitable for:

• drilling for fence posts and structural columns
• Point foundations
• Tree planting and agricultural work
• Geotechnical drilling
• Installation of road signs and lighting

It is a versatile solution that allows the equipment to be adapted to the current needs of the project, whether the work is being carried out on a construction site, in an agricultural area or on infrastructure projects. Thanks to its wide range of drilling diameters, the TEHB4500 can successfully replace several different pieces of equipment, increasing the cost-effectiveness of the purchase and streamlining work organisation. This type of mini-load drill rig offers greater flexibility, faster job completion and the confidence that the drill rig can cope with a wide range of applications without having to change equipment frequently.

TEHB4500 excavator drill rig - stable hydraulics and a wide range of operating parameters

The TEHB4500 is designed to work seamlessly with a wide range of hydraulic systems used on excavators. With a wide operating pressure range and flexible oil flow requirements, the unit can be used in a wide range of machine configurations, making it a versatile solution that is easy to implement in different equipment fleets.

The drill rig operates within a pressure range of 70-240 bar and an oil flow of 25-75 l/min, ensuring a stable hydraulic supply and high performance in all conditions. This design guarantees smooth operation, fast drilling cycles and full operator control, even in difficult terrain where precision, safety and reliable performance over many hours of intensive use are important.

Equipment for construction, agriculture and geotechnics - reliability in the field with the TEHB4500 hydraulic drill rig

The TEHB4500 hydraulic drilling rig is a machine designed for intensive work in industries where durability and performance count. Its robust design and high precision make it a piece of equipment that will perform well in both construction projects and everyday field work.

The TEHB4500 is particularly recommended for:

• construction and installation companies
• farms
• fencing and foundation contractors
• geotechnical companies

The TEHB4500 hydraulic drilling rig is a reliable excavator and loader attachment that is ideal for construction, agricultural and geotechnical applications. With its robust design, high power and versatile performance, it is a piece of equipment designed for intensive field work, providing efficiency, precision and reliability even in difficult ground conditions.
