Bobcat mini-loader drill rig 2.5-5 t - TEHB3500
TEHB3500
+48 604 108 143Monday - Friday 8.30 - 17.30
TEHB3500 Hydraulic Earth Auger for Bobcat Skid Steer Drillers - the Ideal Tool for Drilling in Difficult Conditions
High performance and precision in all conditions

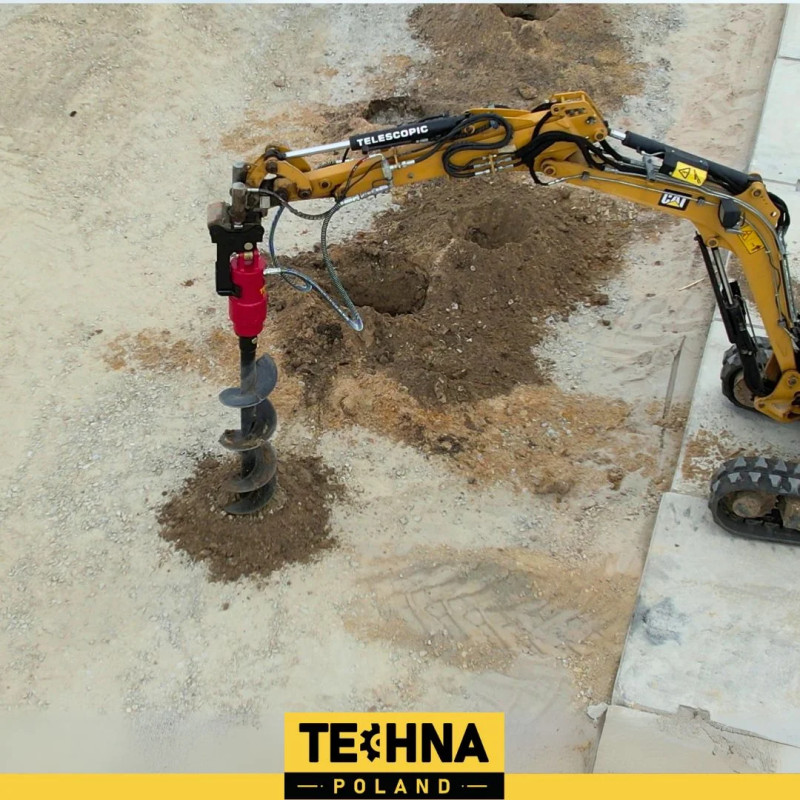

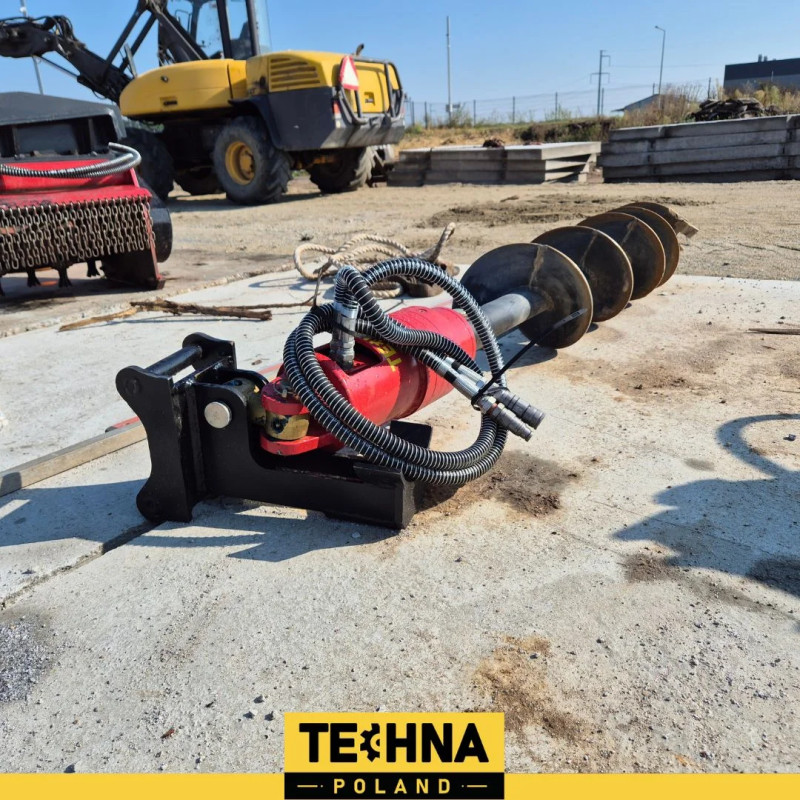

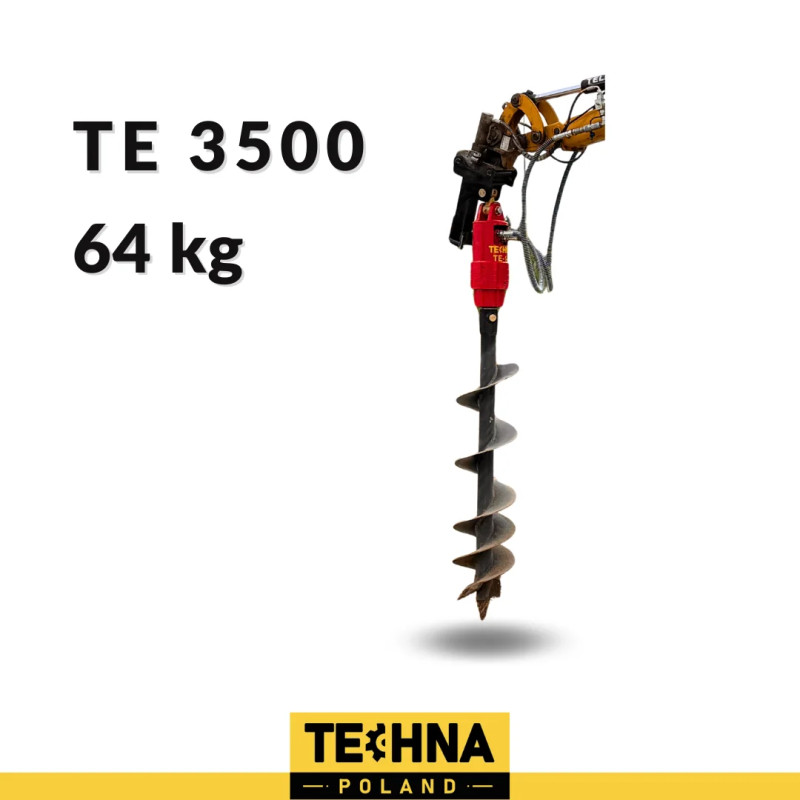

The TEHB3500 hydraulic earth auger is a reliable tool that works with Bobcat mini loaders from 2.5 to 5 tonnes. With its robust design and powerful torque, it is ideal for difficult ground conditions. It can be used to drill into a variety of soil types, from soft soils to hard rock. It's a piece of equipment that's great for construction, agriculture and geotechnics alike. If you need a tool that can handle drilling in demanding conditions, the TEHB3500 is an excellent choice.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 2,5-5 t |
| MASS OF THE POWER UNIT | 65 kg |
| WORKING PRESSURE | 70-240 bar |
| OIL FLOW | 25-75 l/min |
| MAXIMUM ROTATION VALUE | 72 obr./min |
| INPUT DIAMETER | 65 mm okrągła |
| DIAMETER OF THE DRIVE UNIT | 232 mm |
| DRILLING DIAMETER RANGE | 100-400 mm |
| MAXIMUM TORQUE | 3500 |
Advantages and Modern Hydraulic Technology
The TEHB3500 drill rig provides high power and precision drilling thanks to an advanced hydraulic drive that minimises the load on the machine. With an operating pressure range of 70-240 bar and optimum oil flow (25-75 l/min), it is possible to work efficiently even in the most demanding conditions. The machine is also distinguished by its robust design and high-quality components, which ensure longevity and minimal running costs. In addition, the wide range of drilling diameters (100-400 mm) makes the TEHB3500 highly versatile and will prove its worth in a variety of construction and agricultural tasks.
Applications of the TEHB3500 in Well Drilling and Other Earthworks
The TEHB3500hydraulic earth auger is particularly appreciated for drilling wells, both for potable water intakes and irrigation systems. Its wide range of diameters allows it to drill holes to suit different types of water systems. Thanks to its high torque and precise speed control, the TEHB3500 is ideal for difficult conditions such as hard ground or rock. You will successfully use it to drill holes for foundations, fence post installations, drainage systems or lighting poles.
Efficient and energy-saving
The compact design of the TEHB3500 mini-load drill rig ensures ease of transport and assembly, making it ideal for work in confined areas. In addition, its hydraulic drive makes the unit energy efficient, requiring no additional electrical power. This means lower running costs and easier operation, even in areas where access to power is limited. If you are looking for equipment that is not only easy to operate, but also saves energy and time, the TEHB3500 will be an excellent choice.
High performance in all conditions
With these features, the TEHB3500 drill offers reliability and precision in drilling, delivering performance in a wide range of construction, agricultural and installation applications. If you are planning work that requires precision drilling in a variety of ground conditions, the TEHB3500 is a tool that will not let you down.
