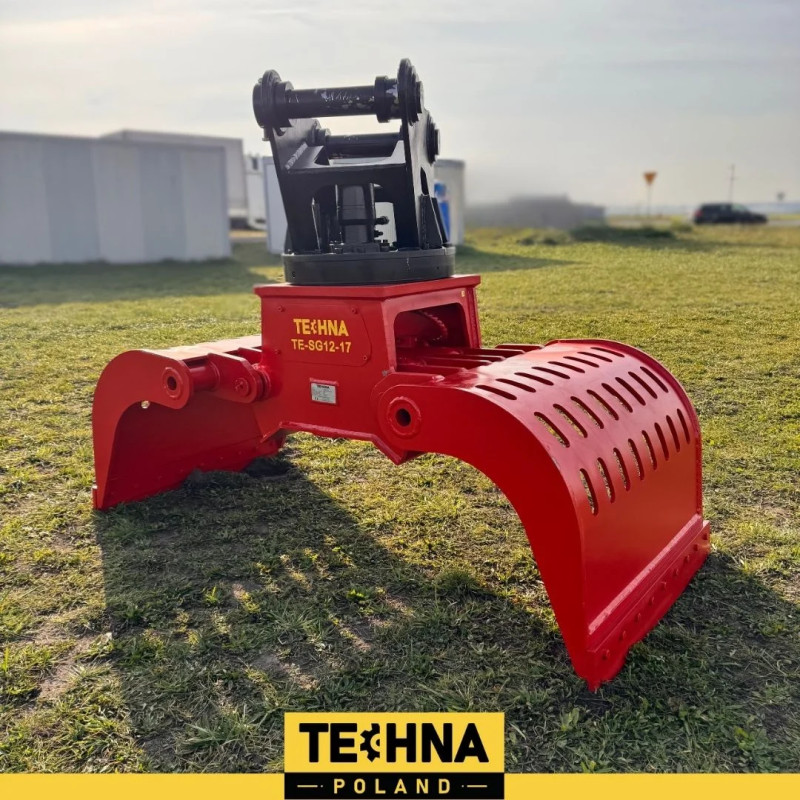

Grapple for excavator grapple for excavator crawler 12-17 tons
TE-SG12-17
+48 604 108 143Monday - Friday 8.30 - 17.30

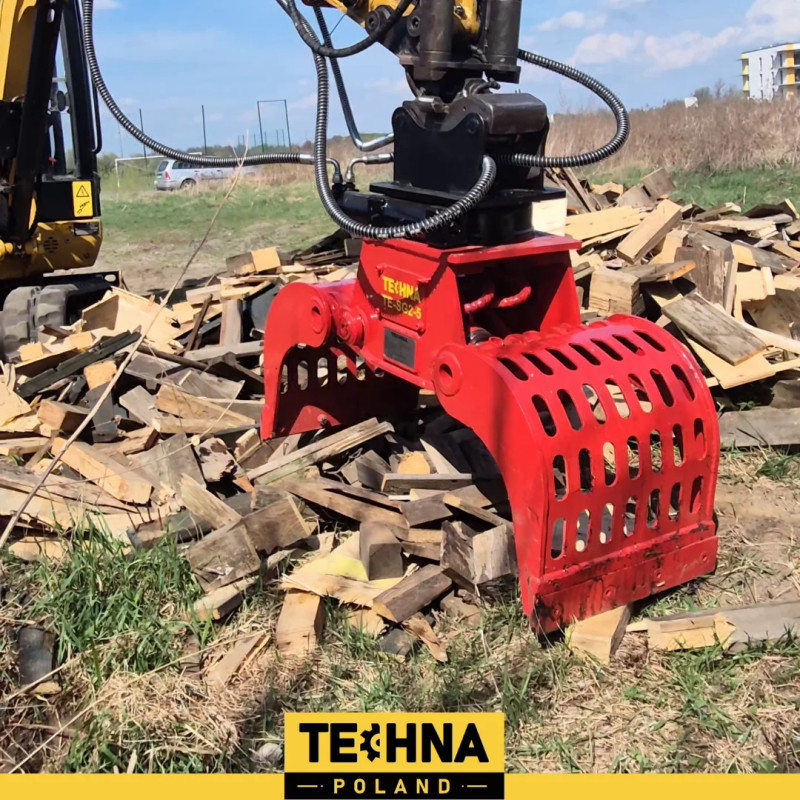

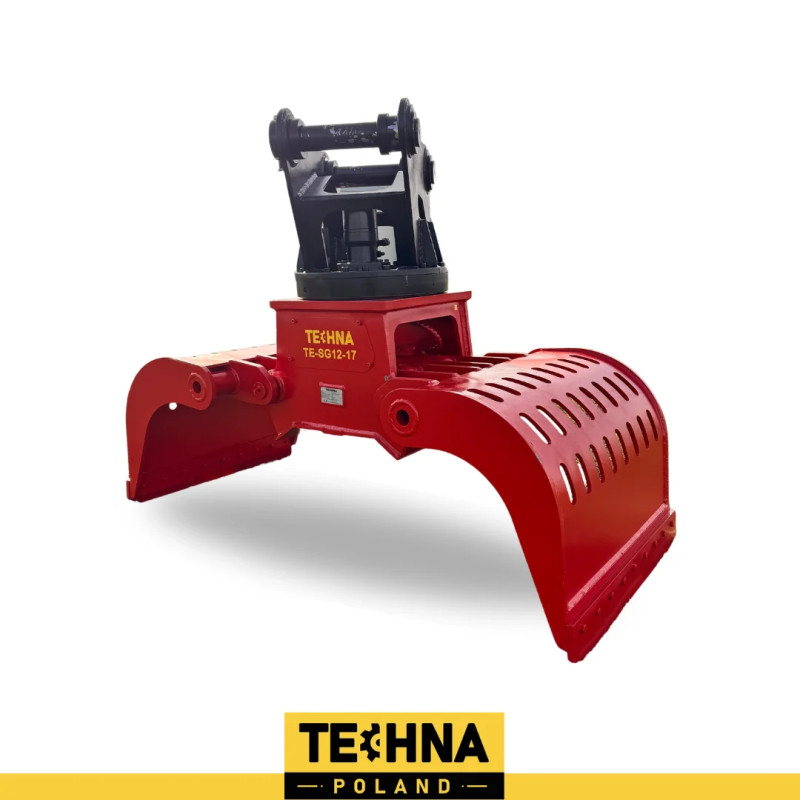

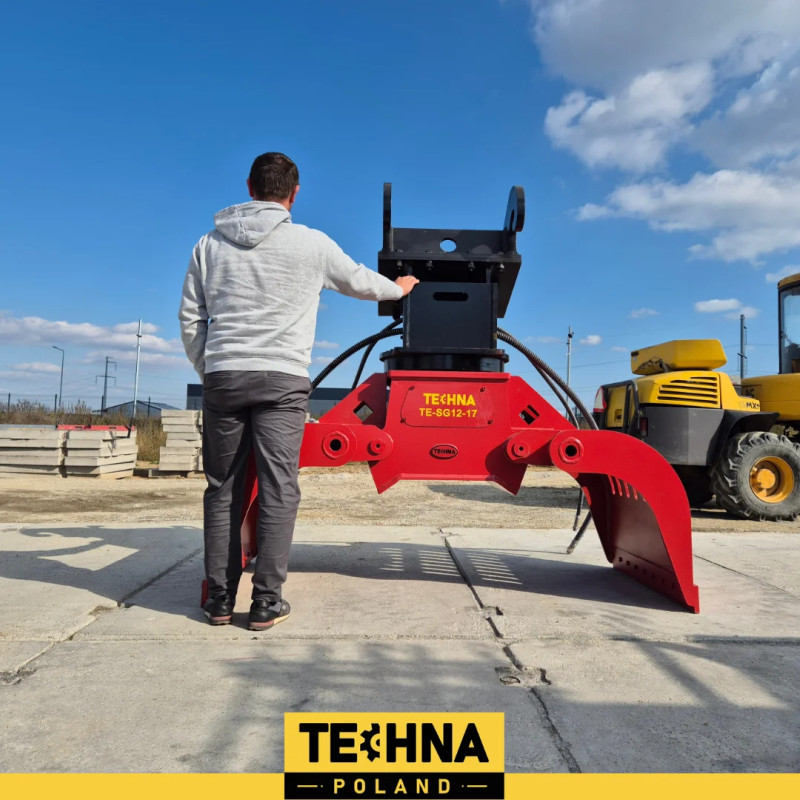

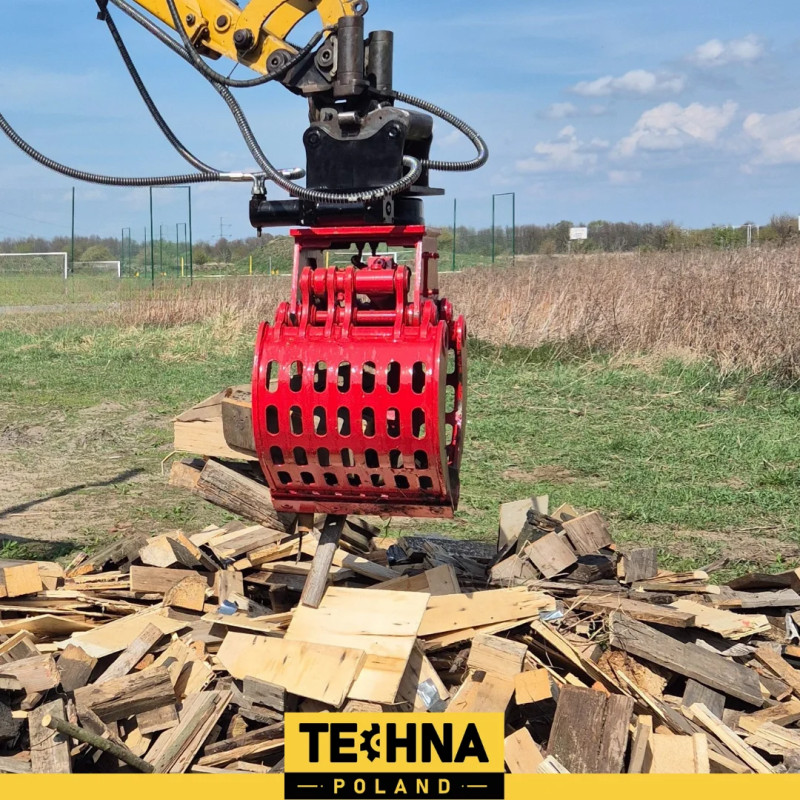

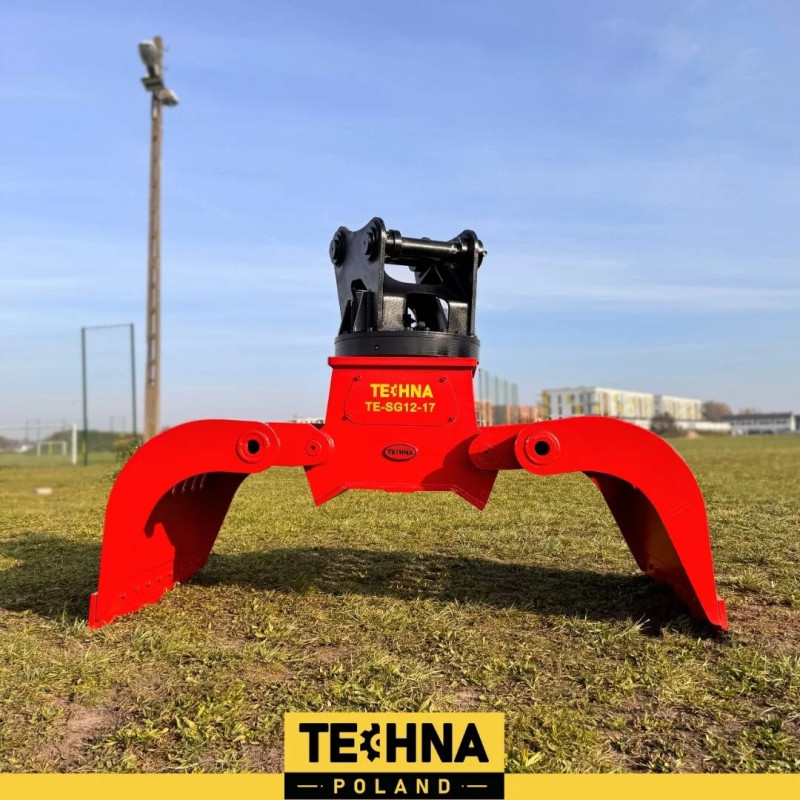

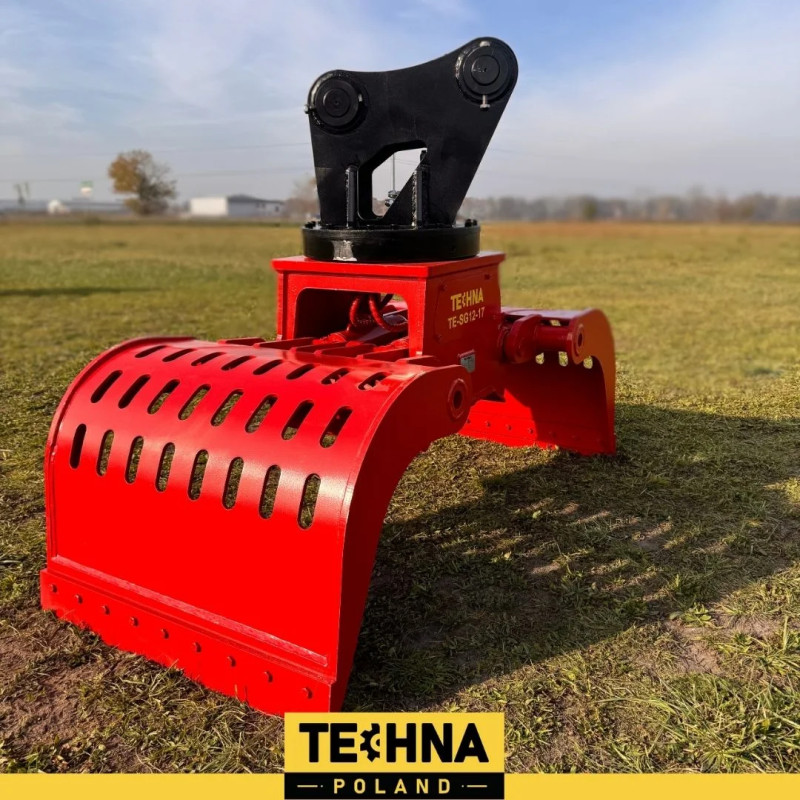

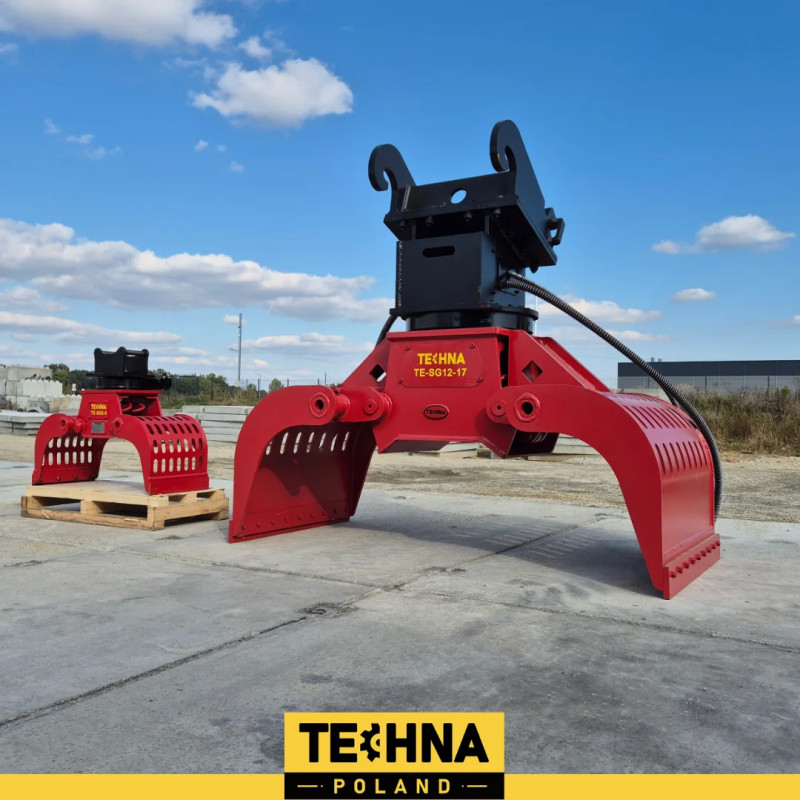

TE-SG12-17 demolition grapple for excavators 12-17 tonnes - Reliability in demolition work
The TE-SG12-17 demolition grapple is a tool specifically designed for heavy-duty tasks in the demolition, recycling and construction industries. Its full 360° rotation and high gripping force make it ideal for 12-17 tonne excavators. Thanks to its wide opening (2100 mm), this grapple is ideal for handling large and heavy materials such as concrete blocks, rubble or steel components. Its precise operation allows it to perform segregation, transport and demolition tasks efficiently, significantly increasing the efficiency of operations.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 12-17 t |
| HARDWARE WEIGHT | 1036 kg |
| WIDTH | 1000 mm |
| WORKING PRESSURE | 55-65 bar |
| OIL FLOW | 16-22 l/min |
| MAXIMUM JAW OPENING | 2100 mm |
| HEIGHT | 1550 mm |
| CYLINDER PRESSURE | 350 bar |
| CYLINDER OIL FLOW | 180-200 l/min |
TE-SG12-17 demolition grapple for excavator 12-17 tonnes - Robust design and advanced technology
The TE-SG12-17 demolition grapple for excavators 12-17 tonnes is distinguished by its exceptional robustness, allowing it to work under extreme conditions. Constructed from high-quality steel and equipped with Hardox abrasive elements, it ensures a long service life even under intensive use.
The ability to fully rotate 360° gives the operator full control over materials, regardless of size, enabling precise handling and transport of heavy loads.
? Check out the full range of grapples for excavators at , to find the right equipment for your machine.
Where does the TE-SG12-17 demolition grapple for excavators 12-17 tonnes work best?
This tool is indispensable in quarries, where great strength and precision are needed when handling stones and rock blocks. The TE-SG12-17 grapple is also ideal for loading construction materials - debris, scrap metal or heavy waste.
Thanks to its versatility, it is also great for selective demolition, where separating raw materials for reuse is crucial. This tool is also used in recycling and industry, allowing efficient waste separation and recovery of valuable materials.
Why choose the TE-SG12-17 demolition grapple for excavators 12-17 tonnes?
If you're looking for a piece of equipment that can handle difficult terrain with ease, the TE-SG12-17 is the tool to meet your needs. With its robust construction, quick installation and simple operation, the grapple is ready for use almost immediately.
Investing in this model not only guarantees high efficiency, but also saves you time and operating costs in the long term.

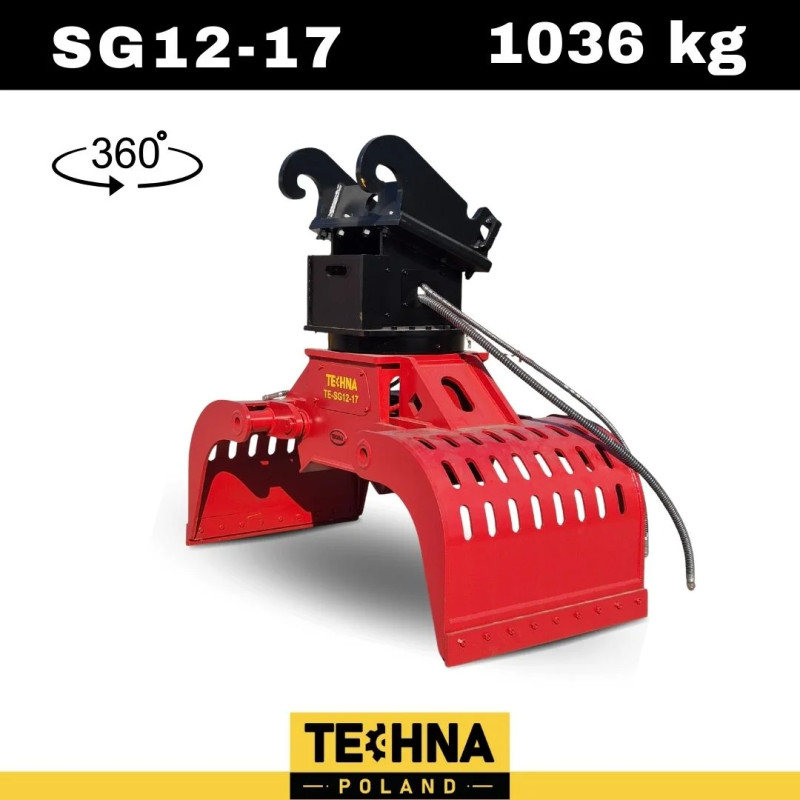

Technical specifications of the TE-SG12-17 grapple for excavators 12-17 tonnes
-
Weight: 1036 kg
-
Maximum opening: 2100 mm
-
Full rotation angle: 360°
-
Hydraulic parameters: engine pressure 55-65 bar, oil flow 16-22 l/min
This combination makes the TE-SG12-17 demolition grapple for excavators 12-17 tonnes a piece of equipment that excels in handling large and demanding materials, guaranteeing stability and efficiency.
