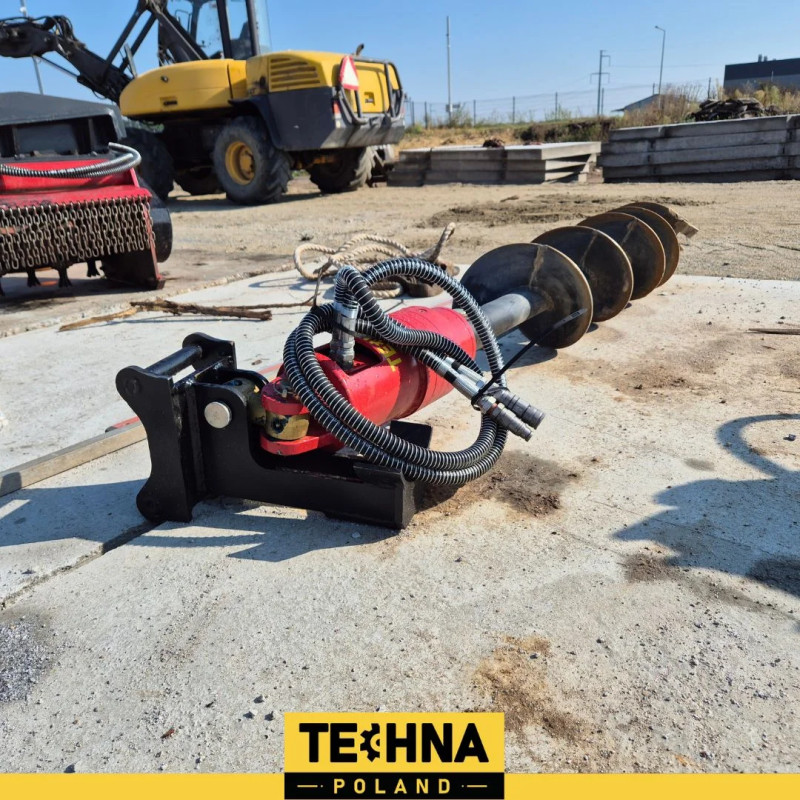

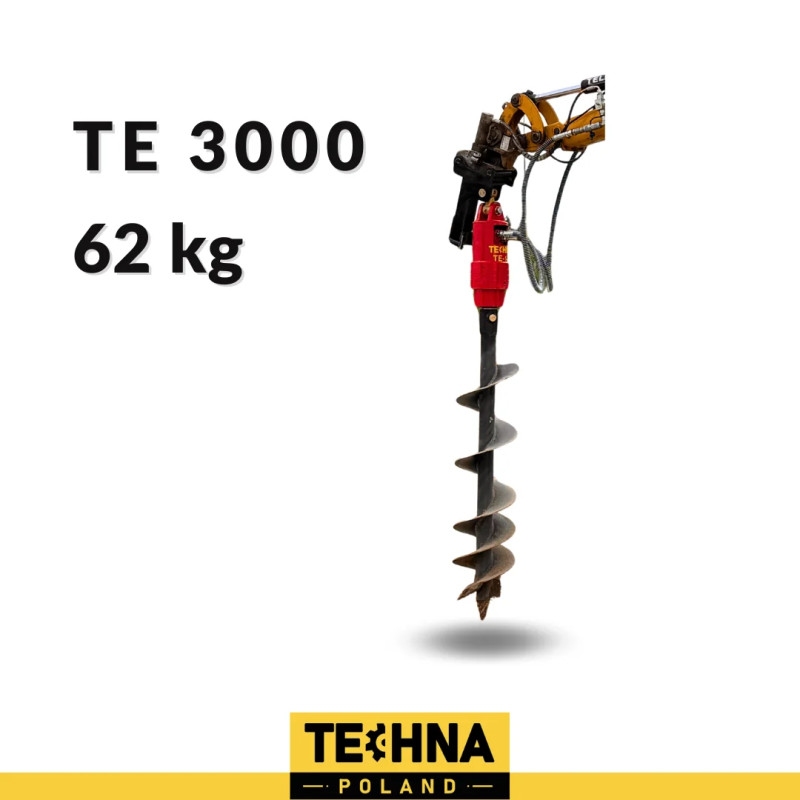

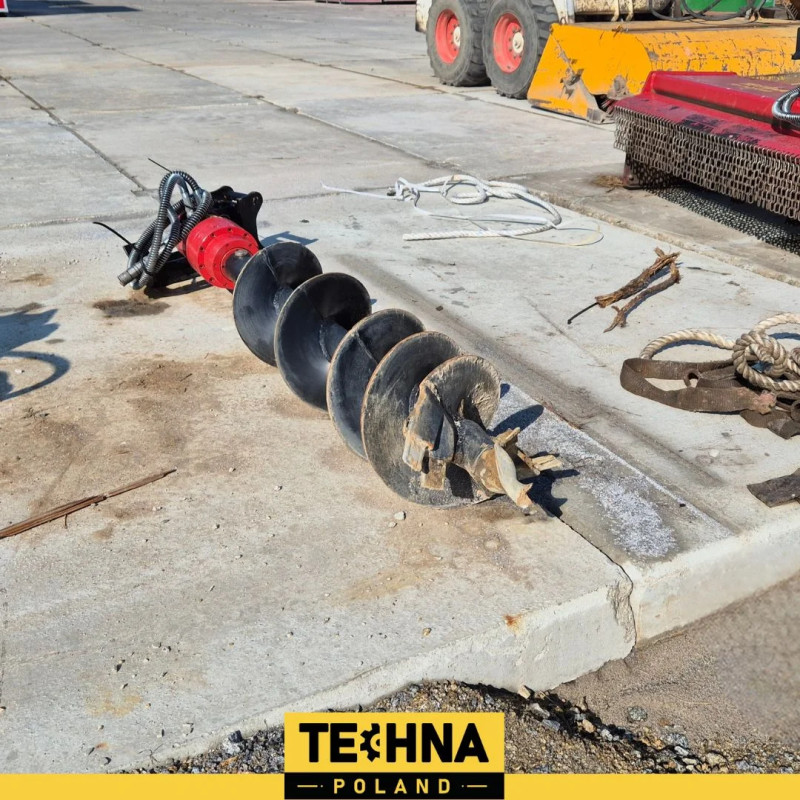

Drilling rig for mini excavator model TEHB3000
TEHB3000
+48 604 108 143Monday - Friday 8.30 - 17.30
TEHB3000 hydraulic earth auger - High performance and wide range of applications
The TEHB3000 hydraulic earth auger is the perfect tool for mini excavators 2 to 4.5 tonnes. With an impressive 3,000 Nm of torque and a wide range of drilling diameters (100-400 mm), the unit copes with a wide range of ground conditions - from soft soils to hard, rocky soil layers. It is indispensable for the construction industry, agriculture and underground installation companies. If you want precision and efficiency, the TEHB3000 will meet your expectations.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 2-4,5 t |
| MASS OF THE POWER UNIT | 62 kg |
| WORKING PRESSURE | 70-240 bar |
| OIL FLOW | 25-70 l/min |
| MAXIMUM ROTATION VALUE | 75 obr./min |
| INPUT DIAMETER | 65 mm okrągła |
| DIAMETER OF THE DRIVE UNIT | 272 mm |
| DRILLING DIAMETER RANGE | 100-400 mm |
| MAXIMUM TORQUE | 3000 |
Advanced Hydraulic Technology - Performance and Safety
What sets the TEHB3000 drill rig apart is its advanced hydraulic system. Thanks to its wide operating pressure range (70-240 bar) and optimum oil flow (25-70 l/min), the unit ensures stable and precise operation even under difficult conditions. The hydraulic drive, combined with an appropriately selected torque, guarantees high efficiency, minimising the risk of overloading and ensuring smooth operations.
Compact Design and Wide Application TEHB3000
The hydraulic earth auger is distinguished by its robust design and compact size. The 65 mm input diameter and compact drive unit (232 mm) provide excellent stability and performance. The rotational speed of up to 75 rpm enables rapid excavated material removal, which significantly speeds up the drilling process. In addition, its light weight (62 kg) makes the drill rig easy to transport and mount on a mini-excavator, making it a very practical solution in the field.
Applications for the TEHB3000 Drilling Rig - From Construction to Agriculture

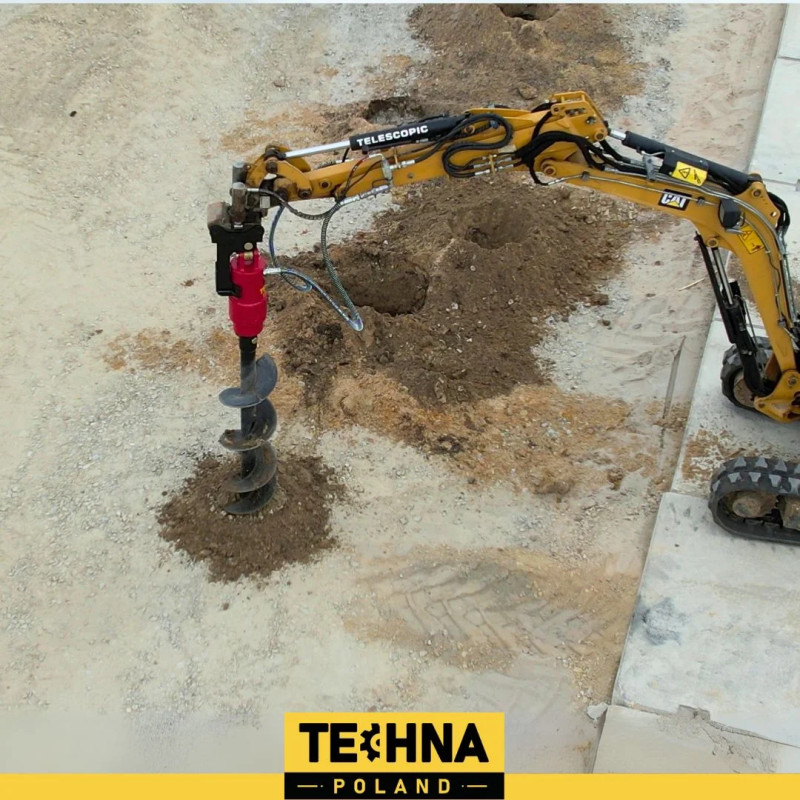

The TEHB3000 drill rig will be suitable for both construction and installation work. It is ideal for drilling holes for point foundations, fence posts, steel structures or drainage systems. You can use it for installing utility poles, as well as preparing areas for tree and shrub planting. Thanks to the precise speed and torque control, the operator has full control over the drilling process, which increases work safety and reduces fuel consumption.
Choosing the TEHB3000 - Precision, Reliability and High Efficiency
If you want reliability and efficiency, the TEHB3000 drill rig is an excellent choice. Its robust construction, advanced hydraulic drive and easy installation of the drill on mini excavators are just some of the advantages that make this rig capable of tackling even the most demanding projects. Whether it's foundation construction, pole installation or agricultural work, the TEHB3000 will help you save time, increase precision and reduce operating costs.
Technical specifications of the TEHB3000 drill rig
The TEHB3000 is a suitable machine weight of 2-4.5 tonnes, with a torque of 3000 Nm and a maximum speed of 75 rpm. With an operating pressure range of 70-240 bar and an oil flow rate of 25-70 l/min, the drill rig ensures stable operation in all conditions. Its lightweight design (62 kg) and 65 mm entry diameter make it an ideal tool in narrow spaces.
