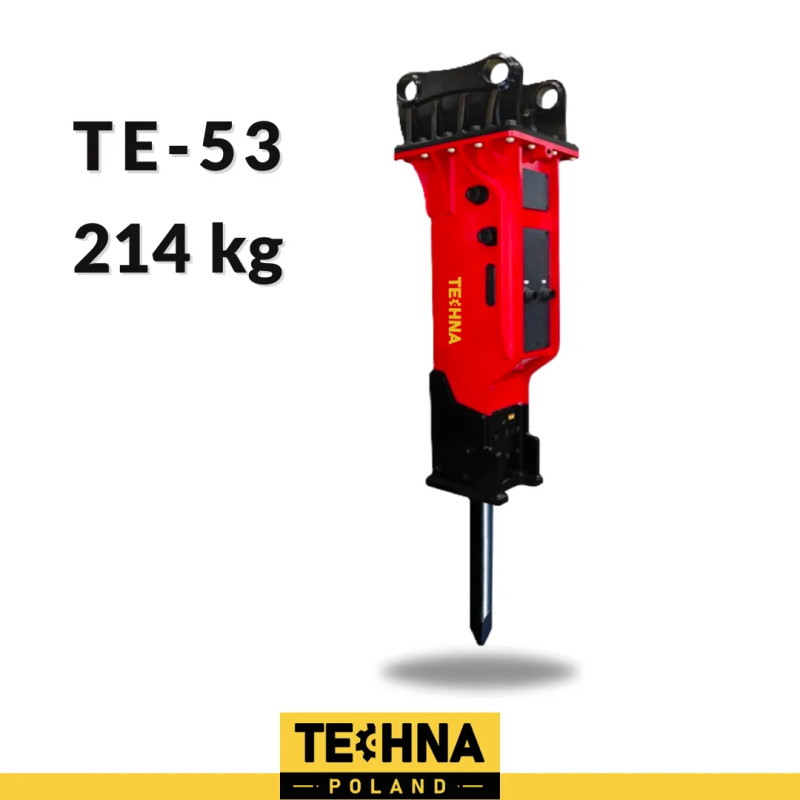

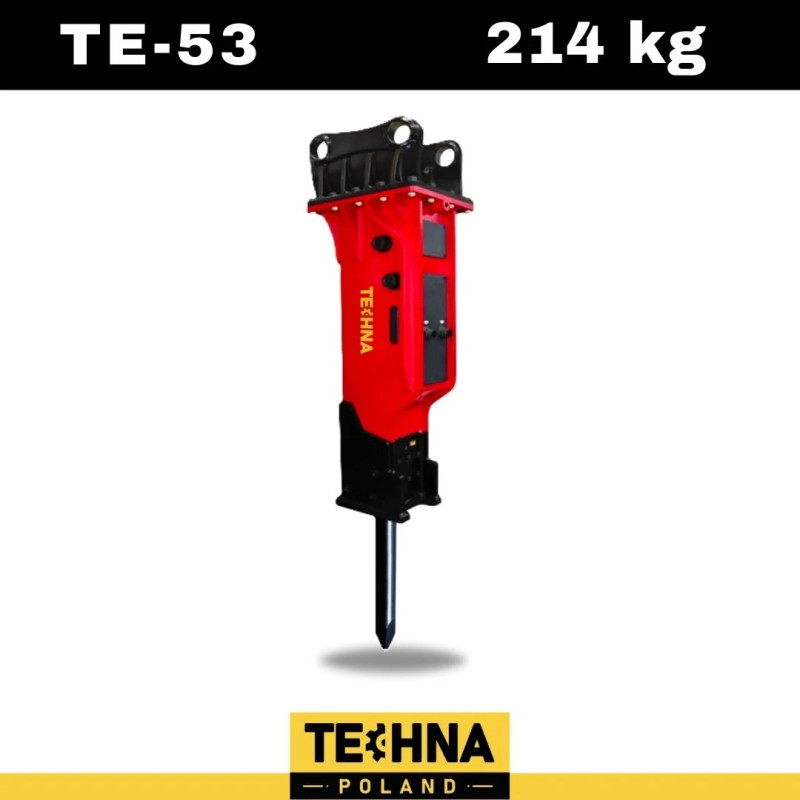

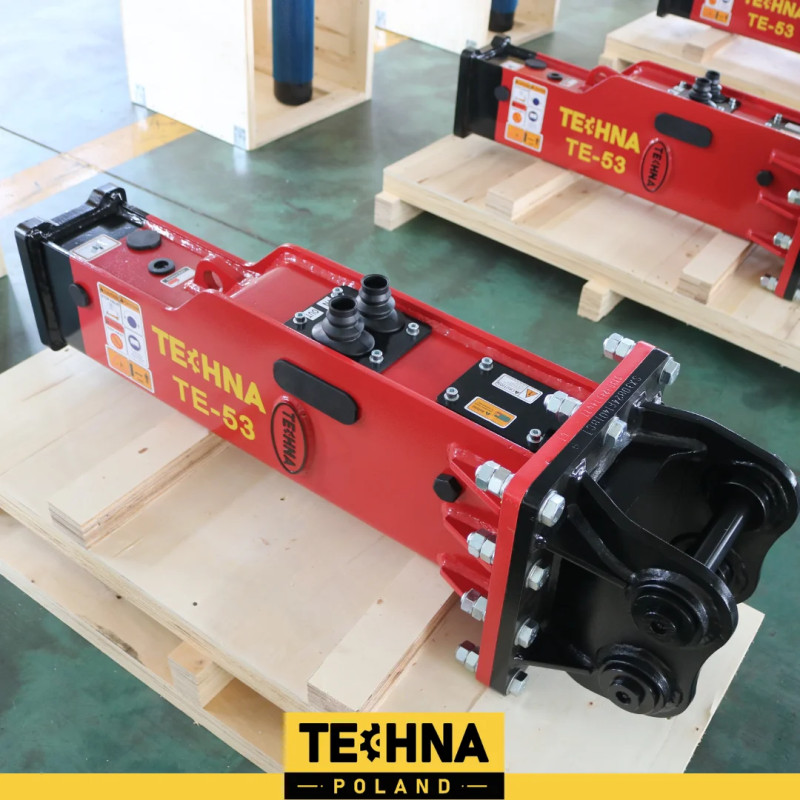

Hydraulic breaker for mini excavator 2.5 t - 4.5 t TE-53
TE-53_1
+48 604 108 143Monday - Friday 8.30 - 17.30
TE-53 hydraulic breaker - a reliable demolition tool for mini excavators 2.5-4.5 t
When you're looking for a hydraulic breaker that can perform in tough conditions, the TE-53 is an option that is sure to meet your expectations. Designed for mini excavators weighing between 2.5 and 4.5t, it combines high impact power with a compact design, making it ideal for demolition, road and quarry work. With the TE-53, you can crush concrete, asphalt, rocks or bricks efficiently - both in urban areas and on construction sites where working space is limited.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 2,5-4,5 mm |
| HARDWARE WEIGHT | 214 kg |
| Length | 1174 mm |
| WIDTH | 230 mm |
| WORKING PRESSURE | 90-120 kg/cm² |
| OIL FLOW | 25-50 l/min |
| STROKE FREQUENCY | 600-1100 bpm |
| Chisel diameter | 53 mm |
| DIAMETER OF CONNECTIONS | 1/2 cala |
How to use the TE-53 hydraulic breaker in your daily work?

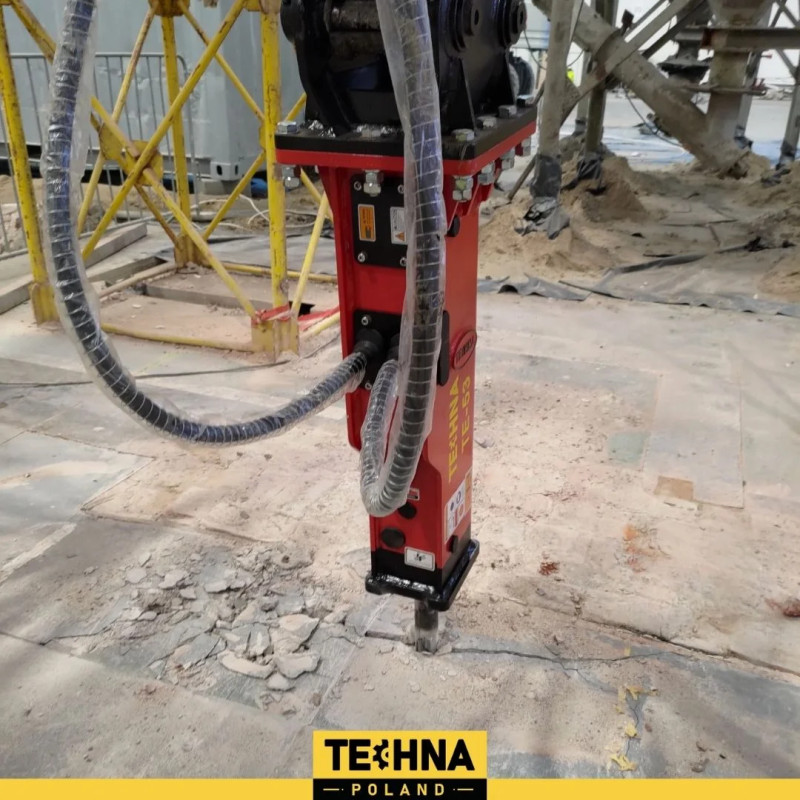

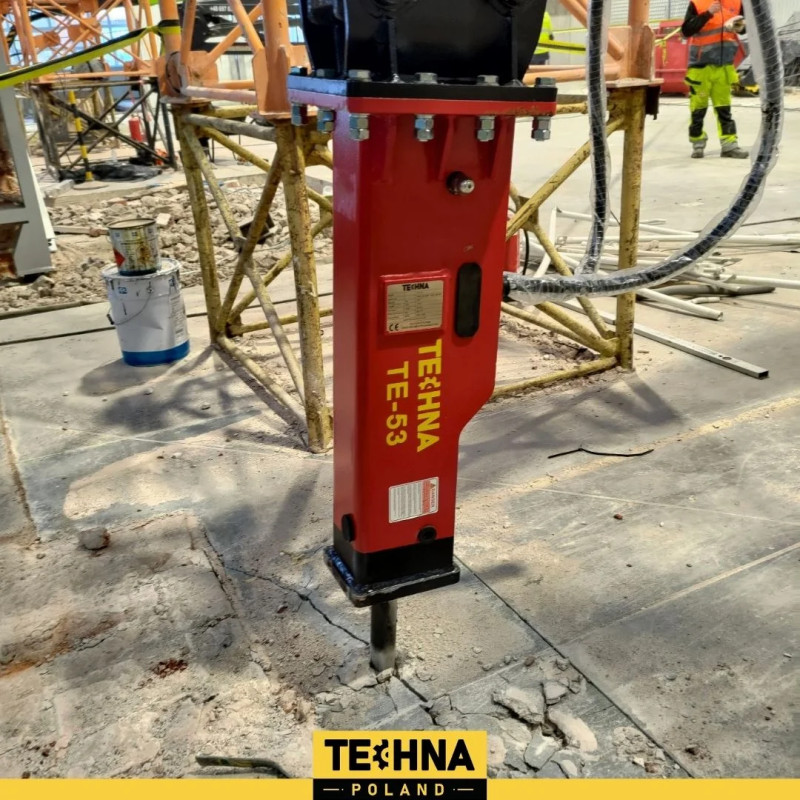

The TE-53 hydraulic breaker works well in many industries. In construction, it can handle demolition of foundations, concrete and reinforced concrete structures. In demolition, it is indispensable for dismantling buildings and removing walls. In roadworks, it enables rapid crushing of asphalt, concrete, kerbs and pavement. In addition, in the mining industry, the TE-53 is excellent for crushing rock in quarries and mines. In agriculture and forestry, it will easily remove terrain obstacles such as tree roots and boulders. Whatever the industry, the TE-53 provides precision and efficiency, even in areas with limited working space.
What sets the Techna TE-53 hydraulic breakers apart?
If you're looking for equipment that not only delivers power but also takes care of your resources, the TE-53 is the right choice. With the right fit, the hydraulic breaker for mini excavators delivers performance while minimising fuel and machine wear. It also has a vibration dampening system that contributes to operator comfort and extends the life of the equipment itself.
Easy maintenance and care of the Techna mini excavator hammer
Did you know that regular lubrication of the hammer is the key to a longer service life? The same goes for checking the hydraulic oil level - important to keep the system running optimally. Checking the condition of the chisel helps maintain efficiency, and storing the demolition breaker for excavators with demolition breaker in a dry place prevents corrosion. Also, checking attachments improves the stability of the attachment, which contributes to safety and quality of work.
Bottom line - why is the TE-53 demolition hammer the choice for you?
The TE-53 hydraulic demolition breaker is a tool that will find its place in any professional equipment kit. Its performance, precision and durability make it an excellent investment in equipment that can handle tough conditions. If you want equipment that is not only effective but also easy to use, the TE-53 will ensure maximum efficiency and safety in your work. Whether you are involved in demolition, demolition or roadworks, the TE-53 is a hammer that simply works.
