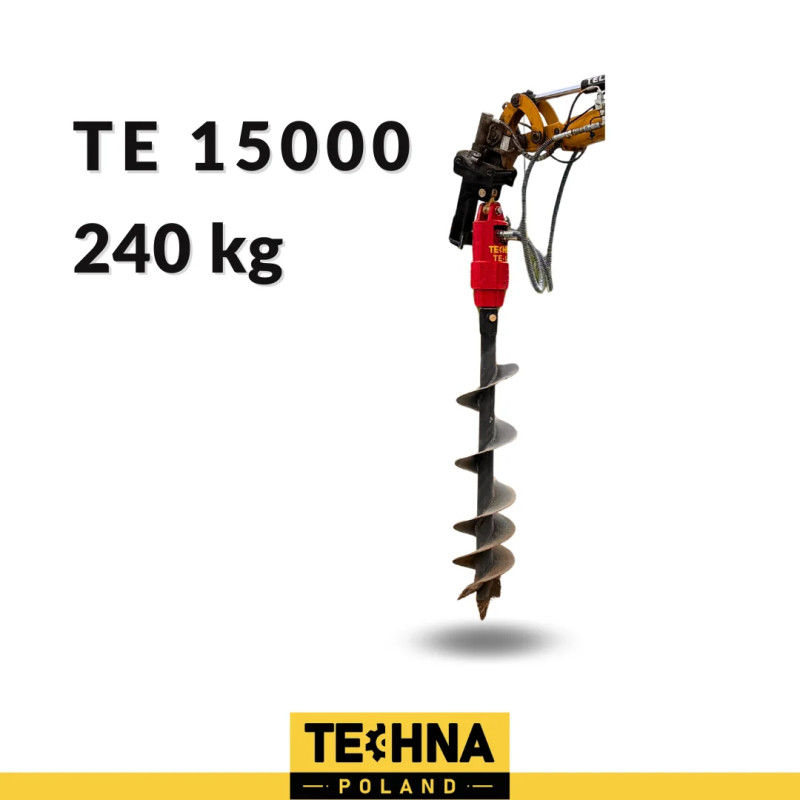

Hydraulic earth auger for excavator 10-15 tonnes - model TEHB15000
The TEHB15000 hydraulic earth auger for excavators is an advanced tool designed for use with 10-15 tonne crawler excavators. With high torque and a large range of drilling diameters, this tool works in the toughest geological conditions, from loose soils to hard rock. If you are looking for equipment for demanding geotechnical, construction and industrial work, the TEHB15000 is the choice for reliability and high efficiency.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 10-15 t |
| MASS OF THE POWER UNIT | 240 kg |
| WORKING PRESSURE | 80-240 bar |
| OIL FLOW | 60-150 l/min |
| MAXIMUM ROTATION VALUE | 45 obr./min |
| INPUT DIAMETER | 75 mm kwadratowa |
| DIAMETER OF THE DRIVE UNIT | 338 mm |
| DRILLING DIAMETER RANGE | 300-1000 mm |
| MAXIMUM TORQUE | 15000 |
Precision drilling in difficult conditions
With a torque of 15,000 Nm and a large drilling range, the TEHB15000 crawler excavator drill rig can drill holes from 300 mm to 1,000 mm in various types of soil. The unique design of the hydraulic drive enables stable operation even in the most demanding conditions, guaranteeing smooth and accurate drilling. Here is a unit that can cope with both hard and softer soils, minimising the risk of damage and increasing the efficiency of work.
Multi-purpose use in geotechnical and construction applications
With the TEHB15000 drill rig, you have the option of drilling for pile foundations, power poles, as well as preparing the site for road infrastructure. Used for geotechnical investigations, it allows you to take soil samples and analyse subsoil layers, which is crucial for large construction projects. In applications such as drilling for micro piles, the hydraulic earth auger for excavators performs well, offering speed and precision.
Drilling rig applications in geothermal installations
The TEHB15000 is also the ideal tool for drilling geothermal boreholes, which are essential for heat pump installations. Thanks to its precision drilling, the unit enables easy and fast installation of geothermal systems in a wide range of ground conditions. The model is also often used for geological investigations, including the assessment of the geotechnical structure of the site in areas at risk of subsidence.
Reliability in the toughest conditions
The TEHB15000 drill rig's design, based on state-of-the-art hydraulic technology, makes the unit extremely resistant to intensive use. Its durability and performance provide excellent reliability, making it the ideal choice for use in demanding geotechnical and construction projects. By choosing the TEHB15000, you are investing in equipment that effectively supports the most complex drilling tasks.
