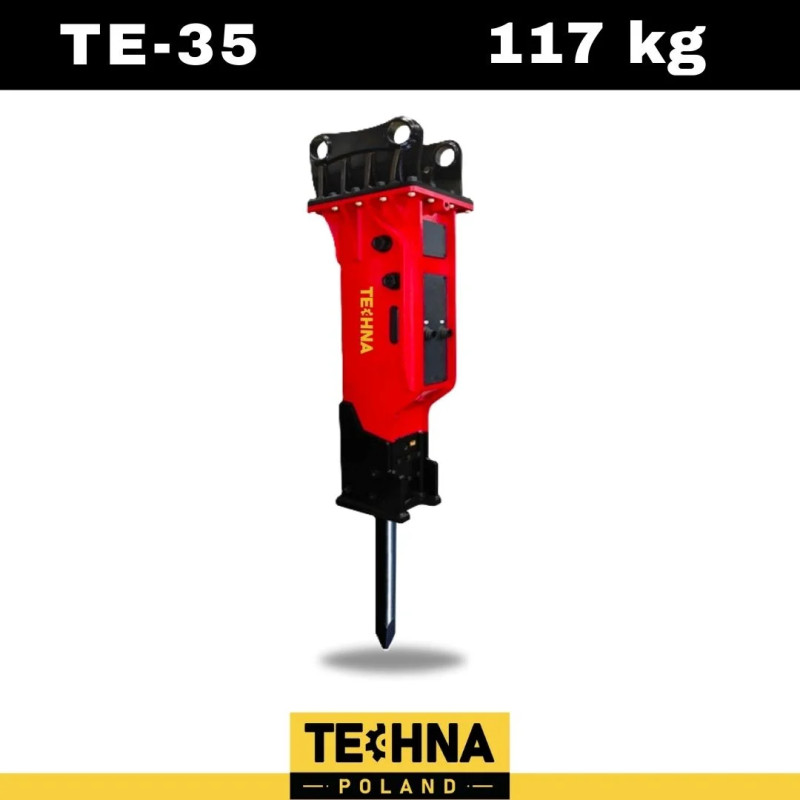

TE-35 hydraulic breaker for mini excavator 0.5 t - 1 t

TE-35 hydraulic breaker suitable for 0.5-1 t mini excavators - a lightweight attachment for special tasks

The TE-35 is designed as a professional attachment for the smallest mini excavators, making it ideal for jobs requiring precision and mobility. The attachment's weight of only 117 kg allows stable operation without overloading the machine, and the compact design makes it easy to manoeuvre in confined spaces, especially on small construction sites and in urban areas.

Key fit parameters include a carrying machine weight of 0.5-1 t, an attachment weight of 117 kg, a connection diameter of 1/2 inch and a chisel diameter of 35 mm. It is the ideal choice for operators who need a lightweight but effective hydraulic breaker for special tasks on small projects.

The TE-35 is an excellent choice in the mini loader demolition hammer category, allowing you to significantly increase the functionality of compact machines and perform precision demolition work in hard-to-reach areas. Thanks to its lightweight design, high performance and suitability for small hydraulic systems, it is a practical solution for companies that want to exploit the full potential of mini equipment without having to invest in larger units.

TE-35 hydraulic breaker with 250 J impact power - effective crushing of concrete, asphalt and rock

Despite its compact size, the TE-35 offers an impact power of 250 J for efficient demolition and demolition work.

The hammer is ideal for:

• concrete and floor crushing,
• breaking asphalt,
• working on point foundations,
• removal of stones and rocks in the field.

It is a piece of equipment that provides real power in a small format, ideal for precise tasks in areas with limited working space. The TE-35 allows demolition work to be carried out efficiently where control, mobility and the ability to operate without the use of heavy equipment is important. This makes the hammer ideal for small construction sites as well as renovation or installation work, offering the operator efficiency and reliability every day.

TE-35 hydraulic breaker - high impact frequency and maximum performance

The TE-35 operates at a frequency of 800-1450 blows per minute, which translates into fast crushing rates and efficient completion of work even with harder materials. Percussion parameters include a frequency of 800-1450 bpm, a chisel diameter of 35 mm and an impact energy of 250 J, allowing the hammer to deliver high performance with full operator control during operation.

The TE-35 hammer has also been adapted for mini excavators with small hydraulic systems, ensuring compatibility with a wide range of machines in this class. Hydraulic requirements include an operating pressure of 90-120 bar and an oil flow of 15-25 l/min, ensuring smooth hammer operation, stable blows and safe use even in difficult terrain.

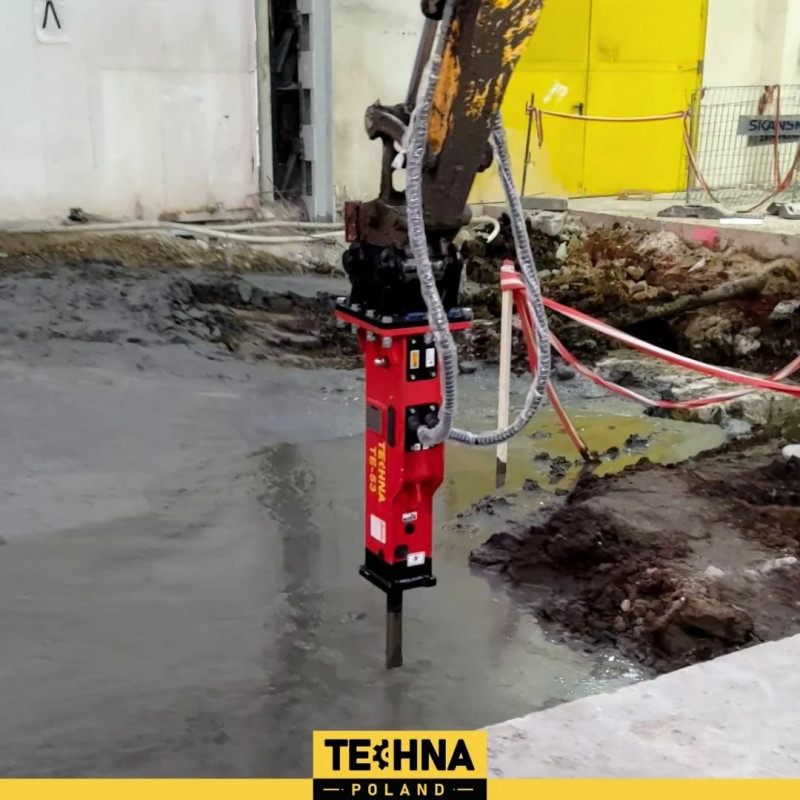

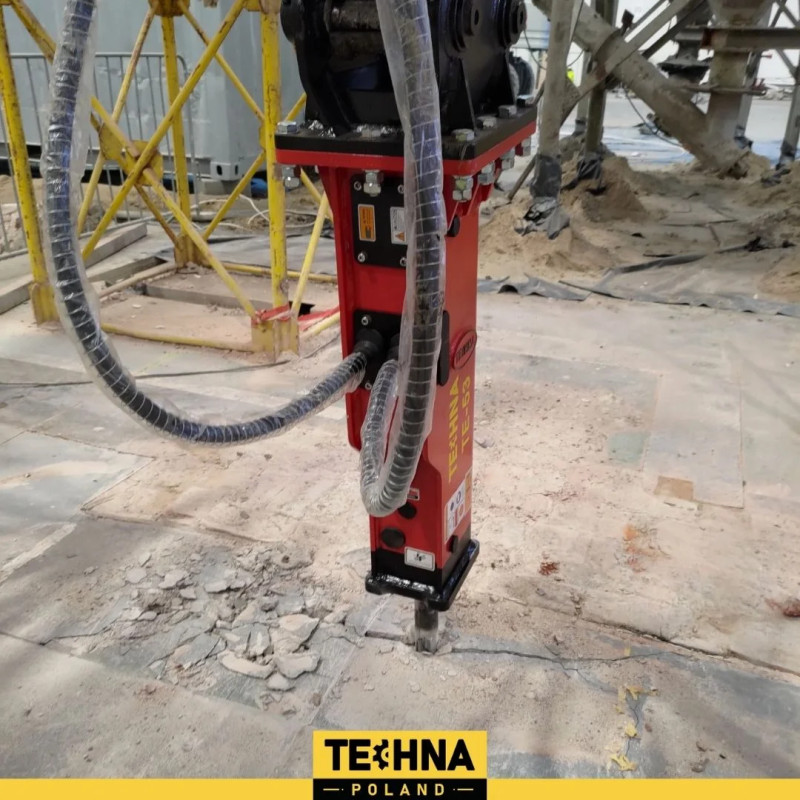

TE-35 hydraulic hammer for mini excavator 0.5t - 1t - ideal for working in tight spaces

The TE-35 hydraulic breaker best demonstrates its capabilities in places where larger machines cannot reach, so it is ideal for work in narrow streets, private properties, buildings and installation work. This excavator attachment is particularly recommended for utility and renovation work, demolition in confined spaces, site preparation for installations, as well as small demolition and foundation work. It is a reliable piece of equipment that enhances the functionality of the machine and allows tasks to be carried out faster and more efficiently even in difficult-to-reach conditions.

The TE-35 is a compact but highly effective hydraulic breaker for 0.5-1t mini excavators. It combines an impact power of 250 J, a high operating frequency and a lightweight design, making it ideal for precision demolition work in hard-to-reach areas.

Contact us to match the TE-35 to your machine and start working with professional attachments.
