TE-68 hydraulic demolition breaker
TE-68
+48 604 108 143Monday - Friday 8.30 - 17.30

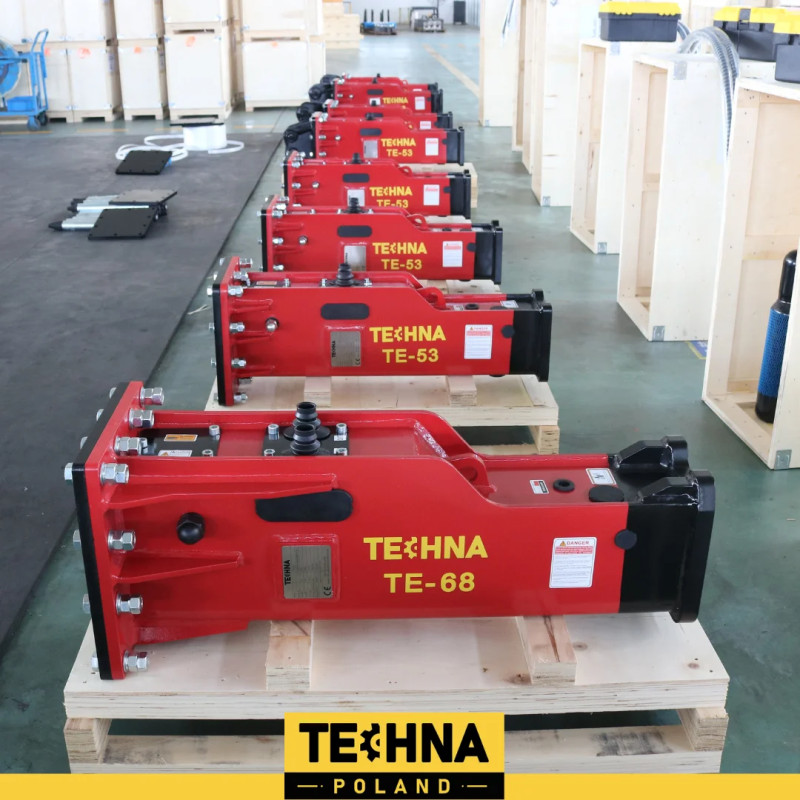

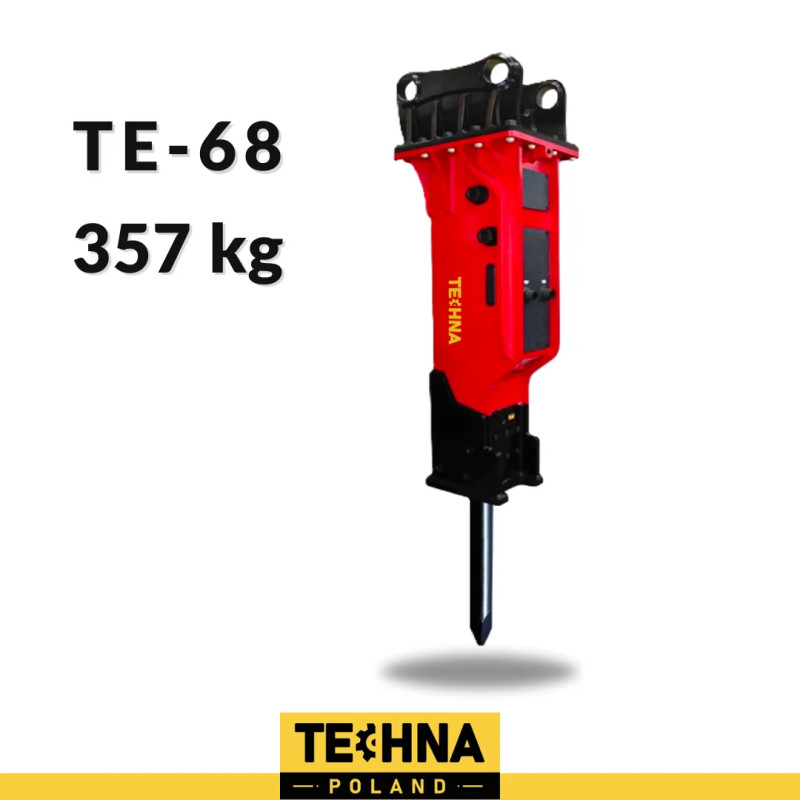

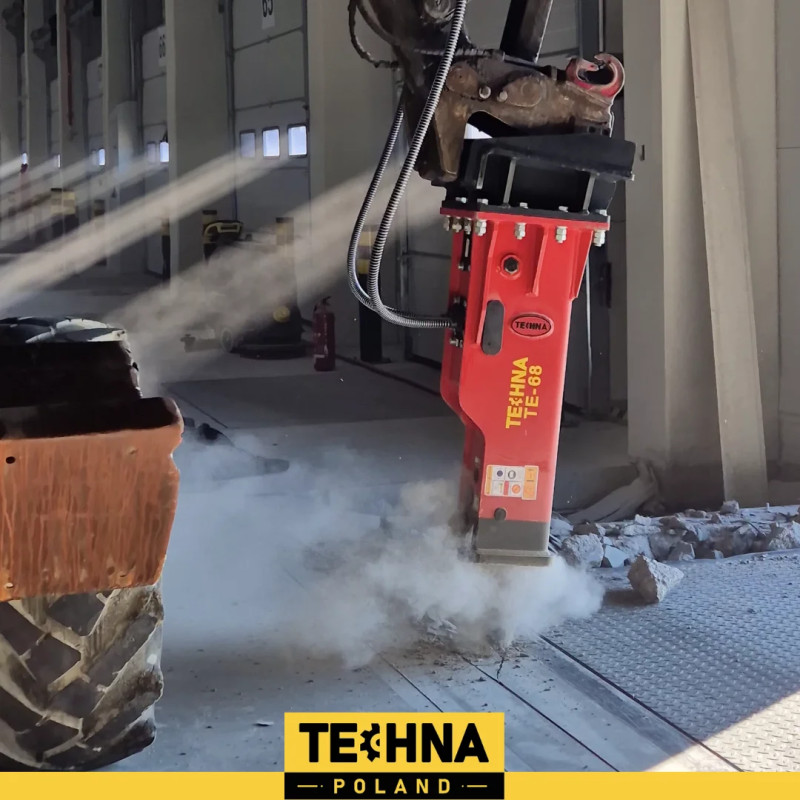

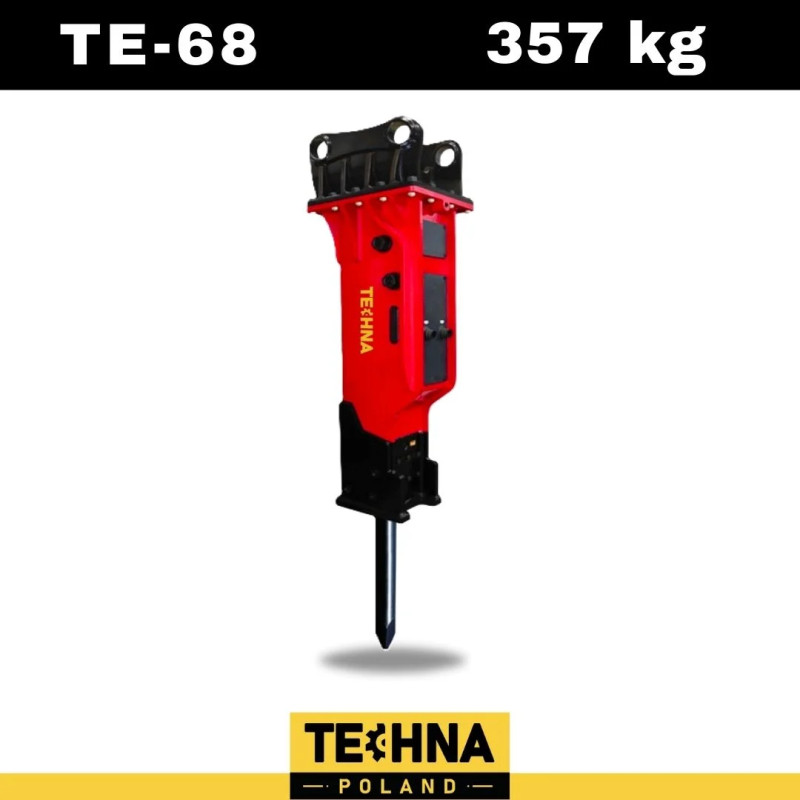

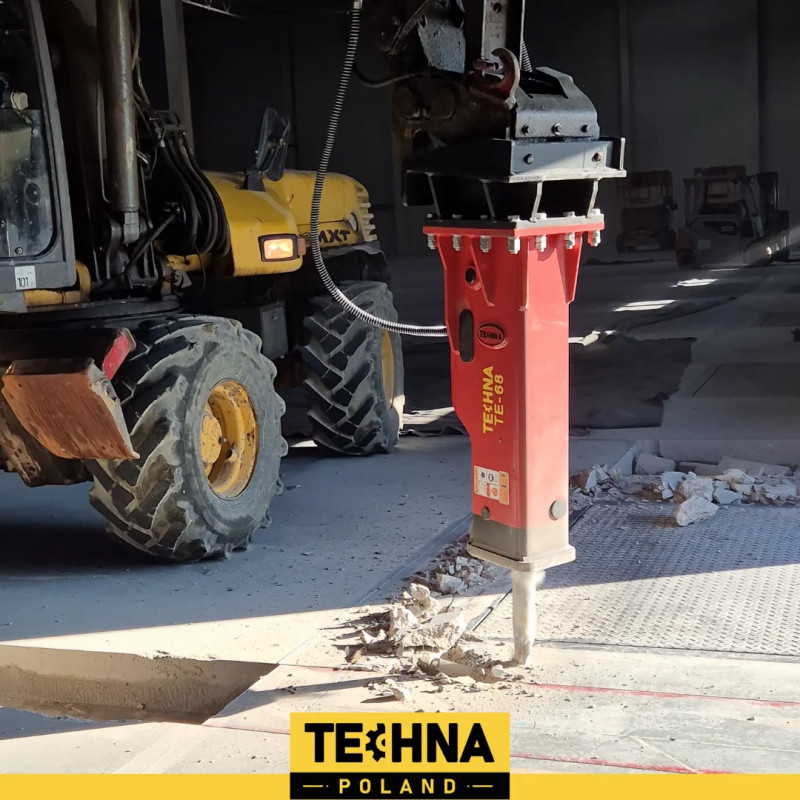

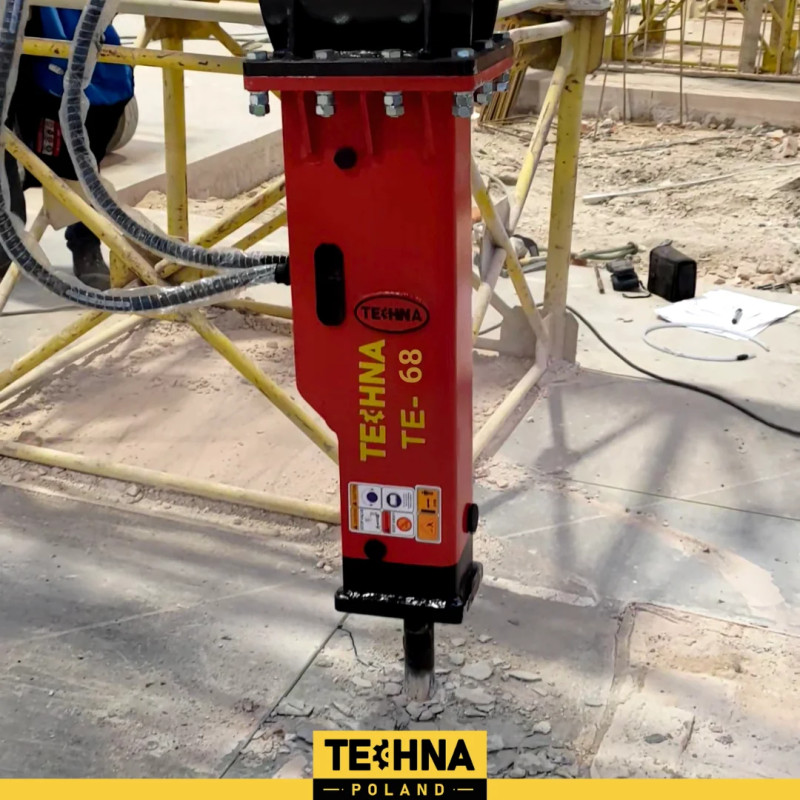

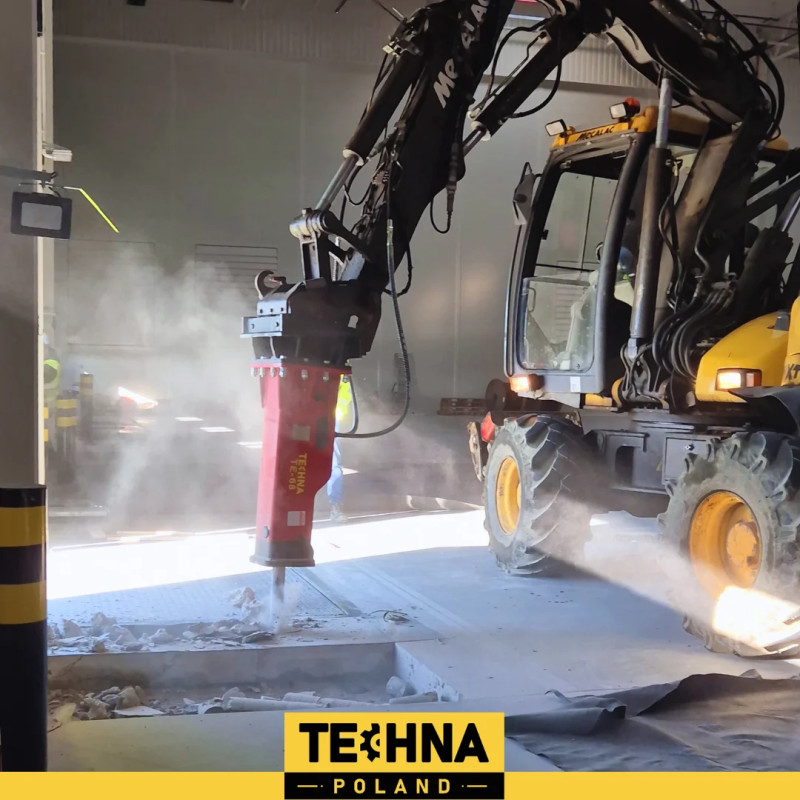

TE-68 hydraulic breaker - precision power for excavators 4-7 t
If you want a tool that combines power with precision, the TE-68 is a hydraulic breaker you can rely on. Its 357 kg weight and robust construction make it one of the most reliable tools for 4-7 t excavators. With the TE-68 you have full control over demolition, even in the most demanding conditions. Thanks to its high impact frequency and accurate handling, this hammer significantly increases the efficiency of construction, road and excavation work.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 4-7 t |
| HARDWARE WEIGHT | 357 kg |
| Length | 1369 mm |
| WIDTH | 295 mm |
| WORKING PRESSURE | 110-140 kg/cm² |
| OIL FLOW | 40-70 l/min |
| STROKE FREQUENCY | 500-900 bpm |
| Chisel diameter | 68 mm |
| PUNCTING POWER | 950 J |
| DIAMETER OF CONNECTIONS | 1/2 cala |
What makes the TE-68 hammer stand out?
The TE-68 hammer is a piece of equipment that really delivers. With an operating pressure of 110-140 kg/cm² and an oil flow of 40-70 l/min, even the most demanding tasks can be completed efficiently and effectively. The impact frequency of 500-900 bpm ensures not only power but also precision, which is crucial when working with materials such as concrete or rock. With a chisel diameter of 68 mm, the TE-68 can handle the toughest surfaces perfectly.
What jobs is the TE-68 hydraulic breaker suitable for?
The TE-68 hydraulic breaker is a versatile tool that will find its place in many industries. If you are involved in demolition work, its precise operation will minimise damage to the surrounding area, and it will be easier to quickly crush concrete, reinforced concrete or other structural materials. For roadworks, it will prove useful for the efficient chipping of asphalt or concrete surfaces. In the mining industry, the TE-68 effectively crushes rocks and boulders in quarries and mines. And in agriculture and forestry, it makes it easier to remove terrain obstacles such as tree roots or boulders. This is a hammer that can handle any surface.
Noise and vibration reduction technology
What else makes the TE-68 stand out? The advanced vibration dampening system makes it more comfortable to work with, especially on long tasks. Thanks to the flexible cushions that isolate the piston, vibrations are transmitted minimally to the machine, increasing its durability. In addition, the quiet design of this hammer makes it ideal for working in confined spaces, such as urban areas where noise can be a problem.
Why is the TE-68 hammer for excavators a worthwhile investment?
Thanks to its power and precision, the TE-68 hammer performs under the most extreme conditions. Its robust construction guarantees longevity, even under intensive use. What's more, its quick assembly and easy operation are features that make everyday work much easier. The TE-68 is a tool that speeds up work, reduces costs and improves operational efficiency.
Summary
The TE-68 is a tool that stands out for its power, durability and precision. With advanced vibration dampening technology and low noise emissions, this is a hammer that can handle any challenge. Ideal for demolition, road construction, mining and more, the TE-68 is a piece of equipment that will meet the expectations of the most demanding operators.
