Hydraulic demolition breaker for excavator with demolition breaker TE-75
TE-75_1
+48 604 108 143Monday - Friday 8.30 - 17.30

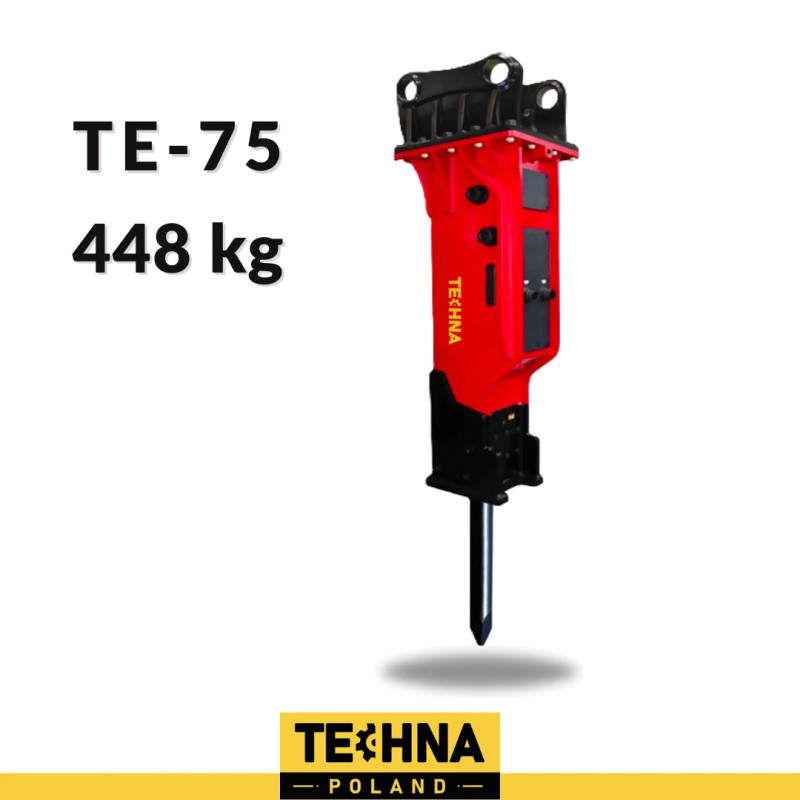

TE-75 hydraulic demolition breaker - a powerful demolition tool for excavators 6-9 t
The TE-75 hydraulic demolition breaker is a piece of equipment designed for the toughest demolition jobs. Designed for excavators with excavators from 6 to 9 tonnes, this hammer combines high impact power with a robust design, making it ideal for demolition, roadworks and the mining industry. Thanks to this combination, the TE-75 can handle the crushing of concrete, asphalt, rock and other hard materials while retaining full control of the workflow, ensuring that even the toughest jobs are completed quickly and efficiently.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 6-9 t |
| HARDWARE WEIGHT | 448 kg |
| Length | 1511 mm |
| WIDTH | 295 mm |
| WORKING PRESSURE | 120-150 kg/cm² |
| OIL FLOW | 50-90 l/min |
| STROKE FREQUENCY | 400-800 bpm |
| Chisel diameter | 75 mm |
| PUNCTING POWER | 1240 J\z |
| DIAMETER OF CONNECTIONS | 1/2 cala |
What qualities make the TE-75 stand out?
With a weight of 446 kg and a length of 1511 mm, the hammer is designed for intensive work in difficult conditions. An operating pressure of 120-150 kg/cm² and a hydraulic oil flow of 50-90 l/min allow for stable operation, while a blow frequency of 400-800 bpm ensures adequate force and precision. With a chisel diameter of 75mm, the TE-75 can cope with the toughest surfaces, ideally suited to 6-9t excavators.
What jobs is the TE-75 suitable for?
The TE-75 hammer is a tool that can handle many challenges. In demolition, it allows you to crush concrete and reinforced concrete quickly and efficiently, without risking damage to the surrounding area. In roadworks, it works well for chipping asphalt and concrete surfaces. If you are involved in the mining industry, the TE-75 will help to crush rocks and stones in quarries or mines. Additionally, in infrastructure work, it will prove useful for landscaping and tunneling, and in agriculture and forestry it will help remove boulders and roots.
Advanced vibration damping technology
What makes the TE-75 unique? Definitely the advanced vibration dampening system, which reduces the transmission of vibrations to the excavator, thereby extending its life. Flexible piston isolation cushions ensure that vibrations are transmitted minimally, increasing operator comfort. In addition, noise reduction with the silent-type design makes the TE-75 ideal for urban areas or enclosed construction sites where noise can be an issue.
Why is the TE-75 an investment that pays off?
With its optimum weight, high impact energy and low running costs, the TE-75 is a tool that fully meets the needs of construction companies and excavator operators. Its robust construction makes it a solution that lasts for years, even under intensive use. Quick installation and easy operation reduce downtime, resulting in increased operational efficiency.
Summary
The TE-75 hydraulic breaker is a reliable tool that stands out for its power, durability and precision. With its advanced vibration dampening technology and low noise levels, it is well suited for demanding conditions. If you're looking for a hydraulic hammer that delivers maximum power and efficiency, the TE-75 is the best choice.
