Hydraulic demolition hammer for TE-75 backhoe loader
TE-75
+48 604 108 143Monday - Friday 8.30 - 17.30

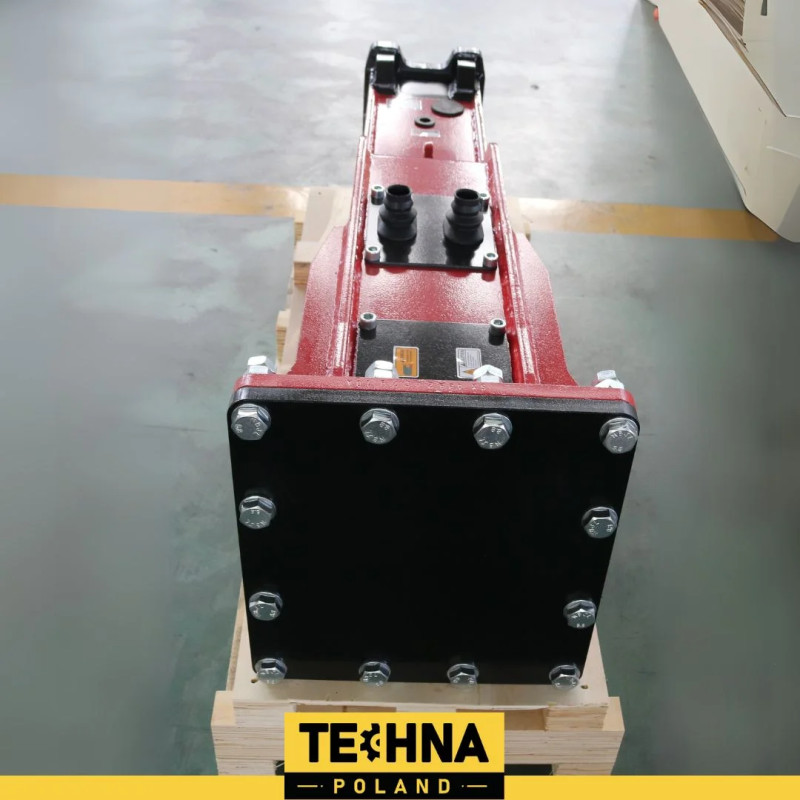

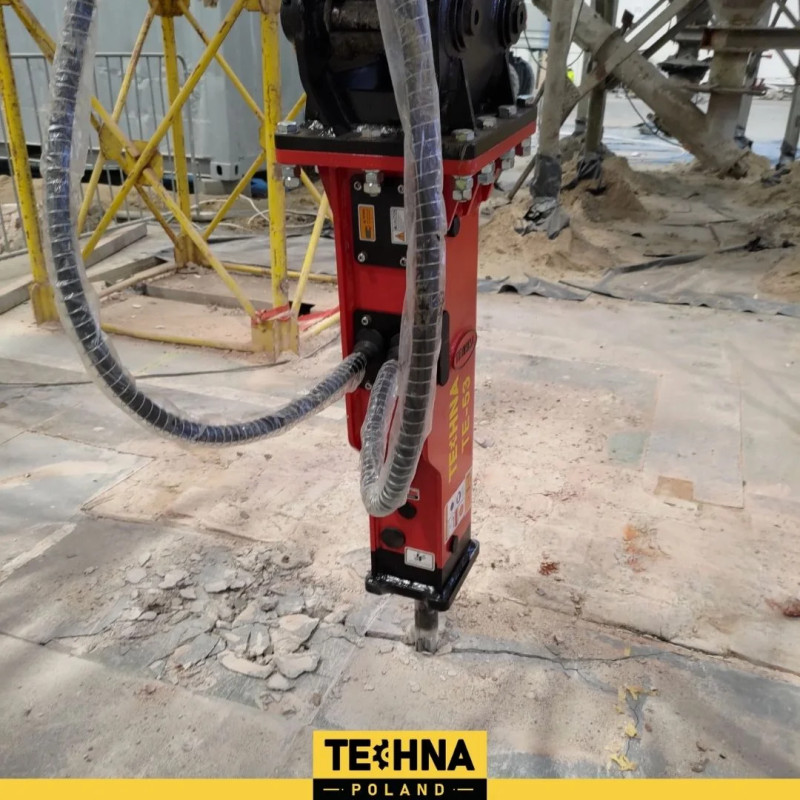

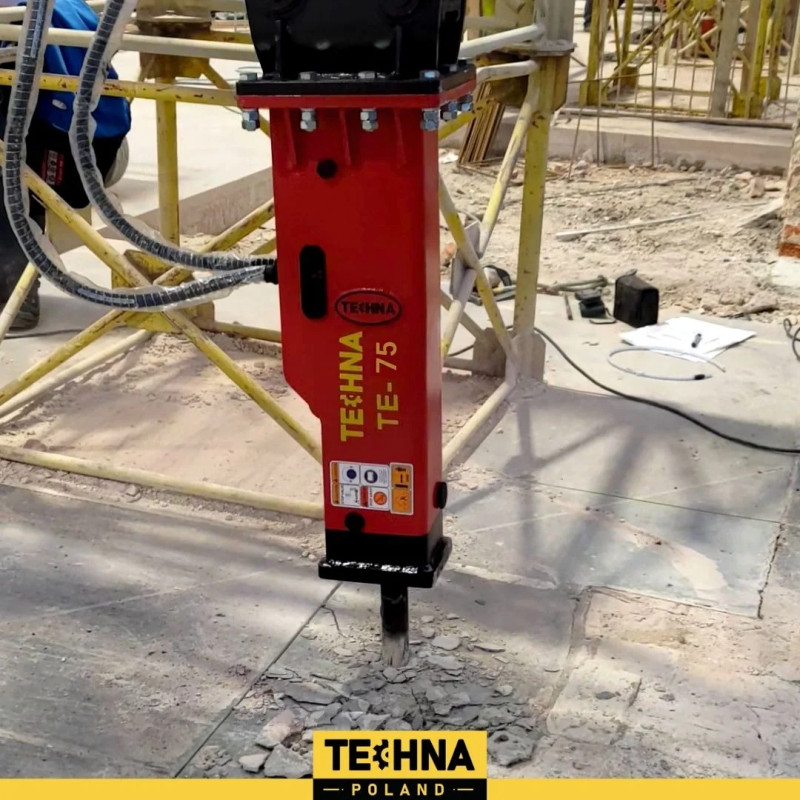

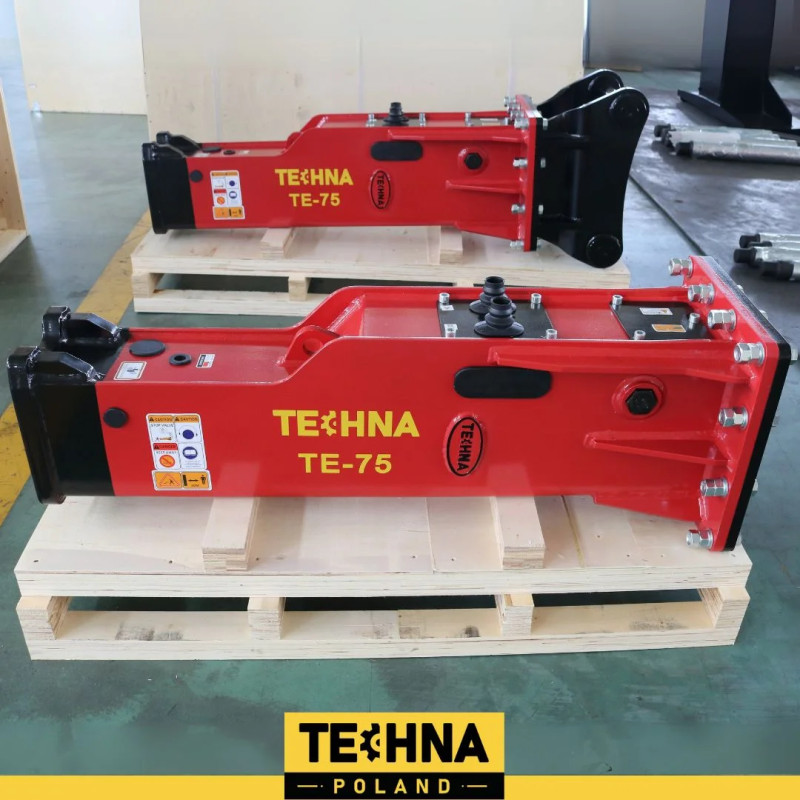

TE-75 hydraulic hammer - the professional tool for demolition and construction work
The TE-75 is a hydraulic demolition breaker that combines power and precision, and its robust design makes it a tool made for heavy demolition work. It is designed for excavators weighing 6-9 tonnes, making it ideal for crushing concrete, asphalt, rock and other hard materials. With its high impact force and precise control, the TE-75 allows even the most demanding jobs to be completed quickly, efficiently.
| Data sheet | Specification |
|---|---|
| MACHINE WEIGHT | 6-9 t |

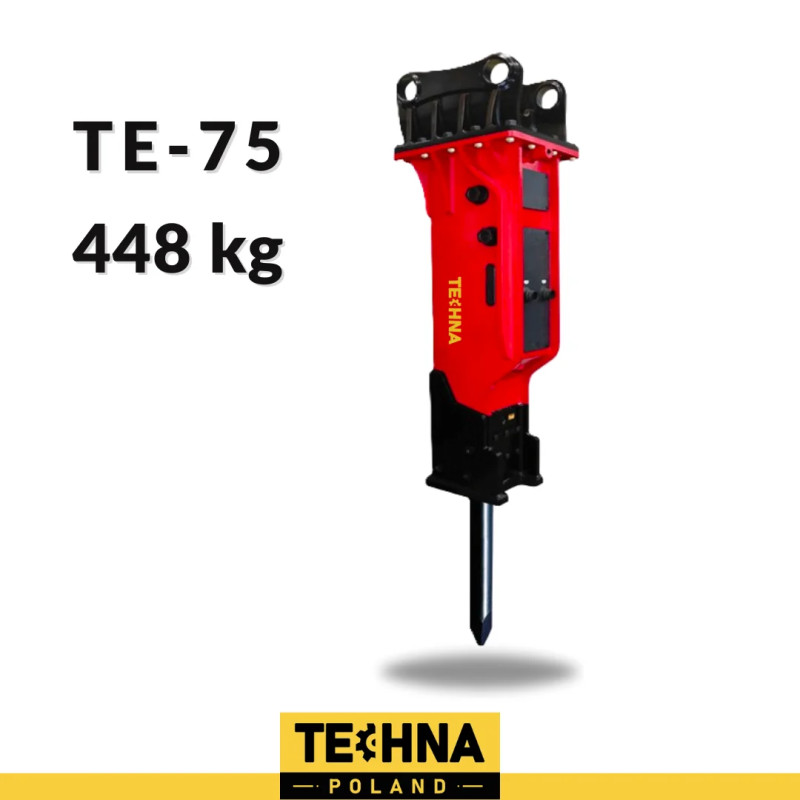

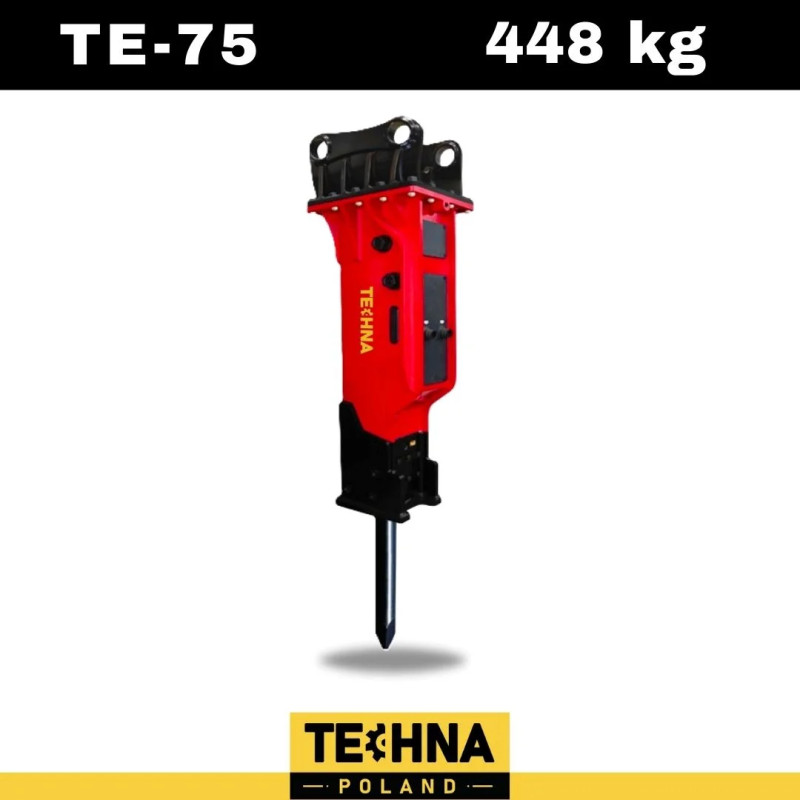

| HARDWARE WEIGHT | 448 kg |
| Length | 1511 mm |
| WIDTH | 295 mm |
| WORKING PRESSURE | 120-150 kg/cm² |
| OIL FLOW | 50-90 l/min |
| STROKE FREQUENCY | 400-800 bpm |
| Chisel diameter | 75 mm |
| PUNCTING POWER | 1240 J\z |
| DIAMETER OF CONNECTIONS | 1/2 cala |
What makes the TE-75 hydraulic breaker stand out?
The TE-75 hammer is a piece of equipment that really gets the job done. With an operating pressure of 120-150 bar and a hydraulic oil flow of 50-90 l/min, this is a tool that is up to any challenge. The hammer frequency of 400 to 800 bpm allows for efficient crushing of materials such as concrete or rock, and the 75 mm chisel diameter is an excellent compromise between performance and precision. As a result, the TE-75 hammer guarantees that any project will be a success, regardless of the difficulty.
What jobs will you do with the TE-75 hydraulic hammer?
This demolition breaker for excavators is a true multi-talent that will find its place in many industries. If you're in the demolition business, its precision work will help you deal with concrete and reinforced concrete crushing quickly and efficiently. In addition, for road works, it will be great for chipping asphalt and concrete surfaces. In the mining industry, the TE-75 crushes rocks and stones in quarries and mines, and in agriculture and forestry it helps remove boulders and tree roots. Thanks to its versatility and high performance, the TE-75 is a tool that can tackle any surface.
Advanced vibration dampening technology
What makes the TE-75 even better? A vibration dampening system that not only protects the machine from excessive wear, but also increases operator comfort. Thanks to the flexible cushions that isolate the piston, vibrations are minimised, resulting in longer machine life. What's more, the quiet design makes the TE-75 ideal for urban areas and enclosed construction sites where noise reduction is key.
Why choose the TE-75 demolition hammer?
If you want high power, durability and efficiency, the TE-75 is the best choice. The demolition breaker for excavators with demolition breaker for backhoe loaders features a robust design that guarantees longevity even under extreme conditions. Its quick installation and easy operation make daily work much simpler. In addition, the low operating costs make it an investment that will quickly pay for itself.
Summary
The TE-75 hydraulic breaker is a tool that combines power, precision and durability. With advanced vibration dampening technology and low noise levels, the TE-75 is the ideal choice for demolition, road, mining and construction work. If you're looking for a tool that delivers maximum power and efficiency, the TE-75 is a piece of equipment that will not disappoint.
Check out other models:
TE-60 hydraulic breaker for backhoe loader

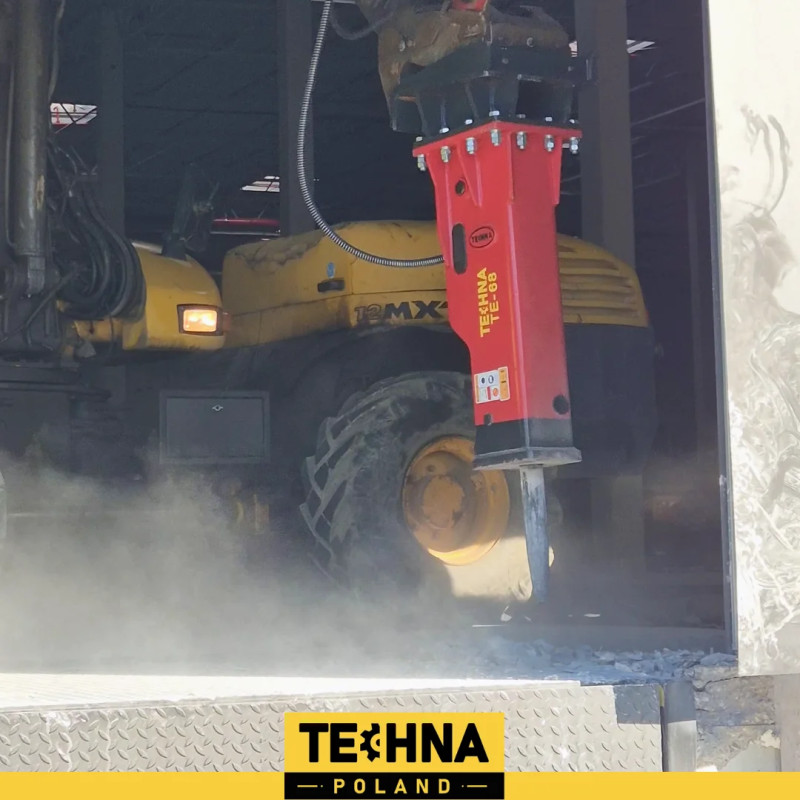

TE-68 demolition breaker for excavator with demolition breaker for backhoe loader
For more information or inquiries, please visit our contact or our page.
